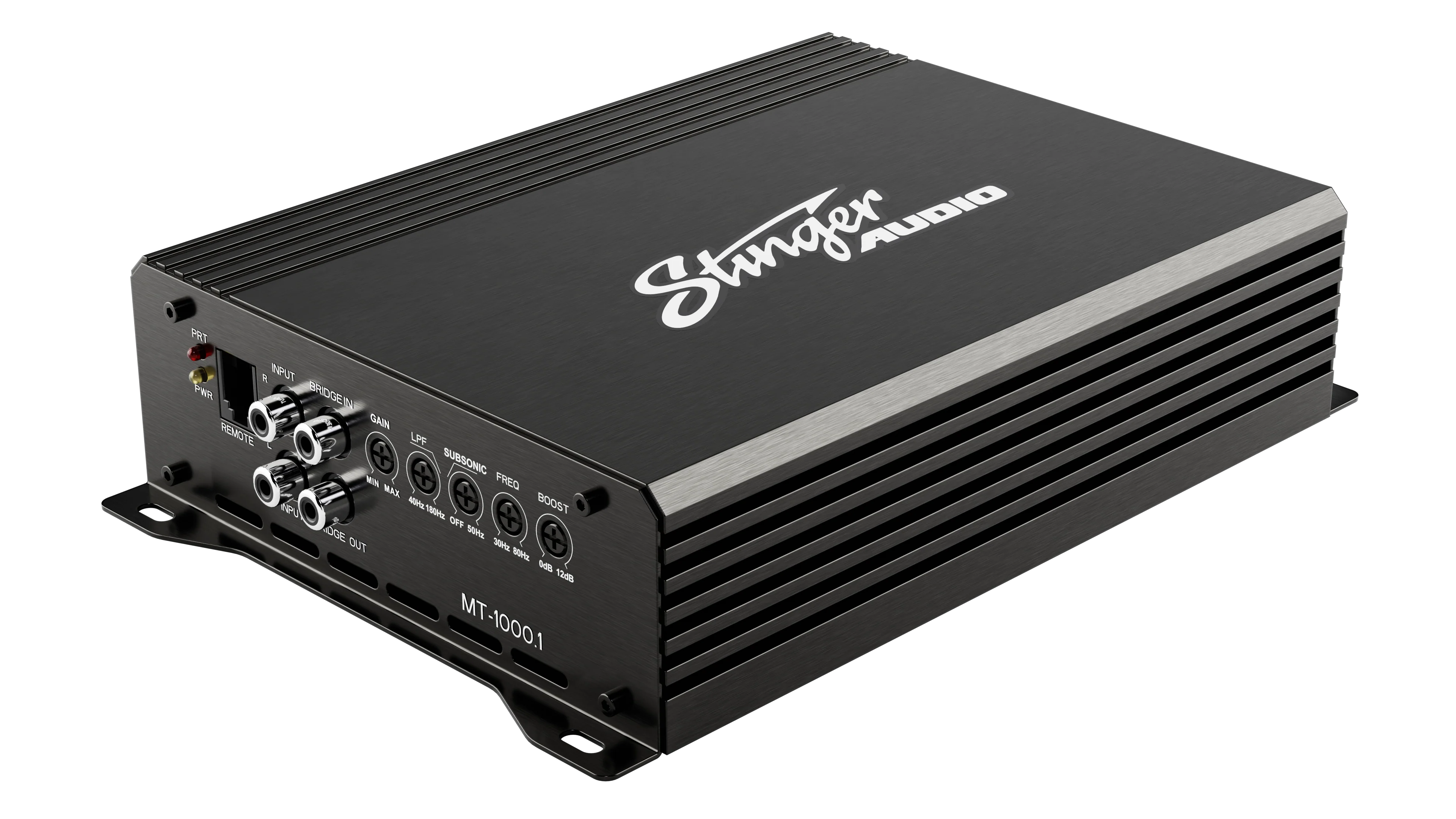

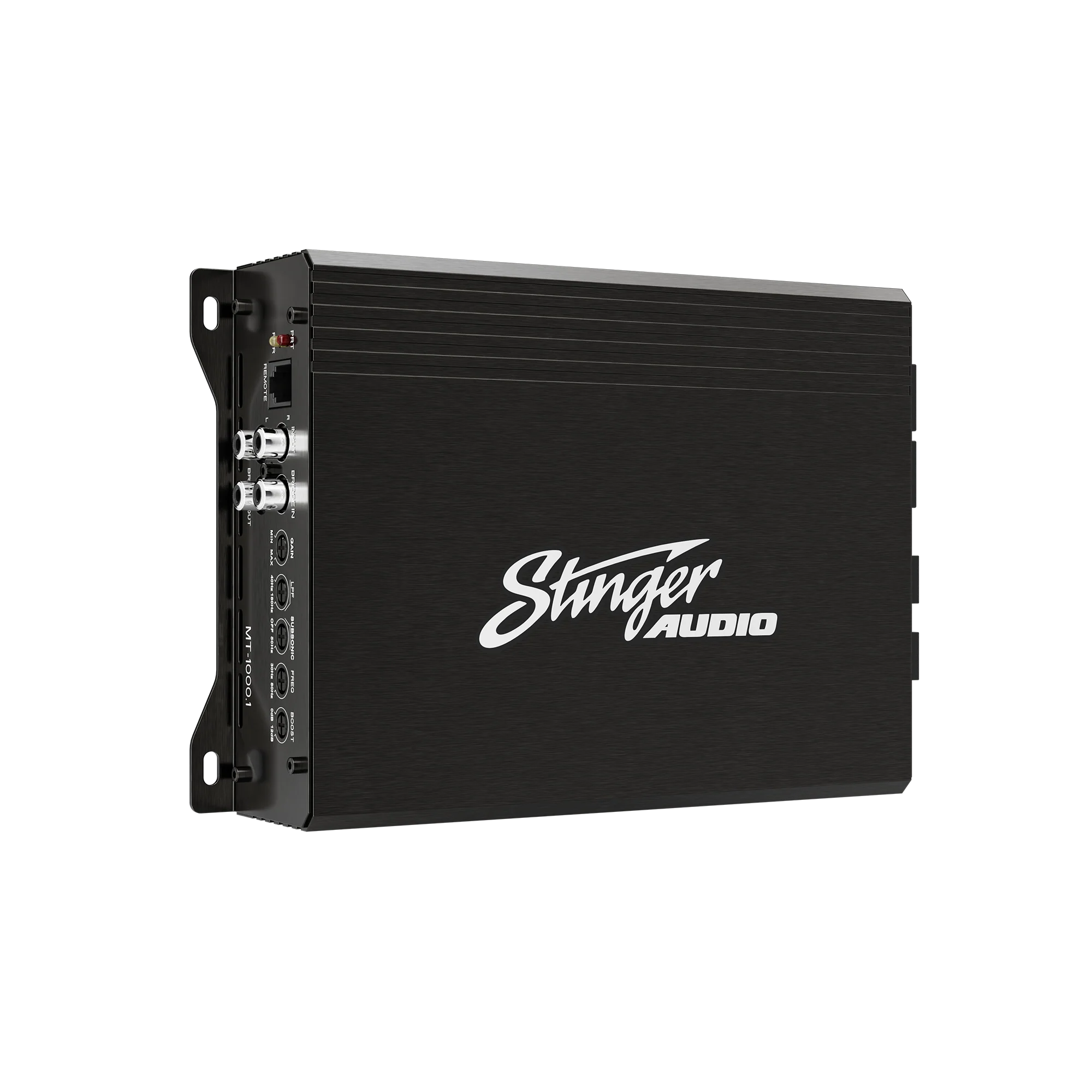

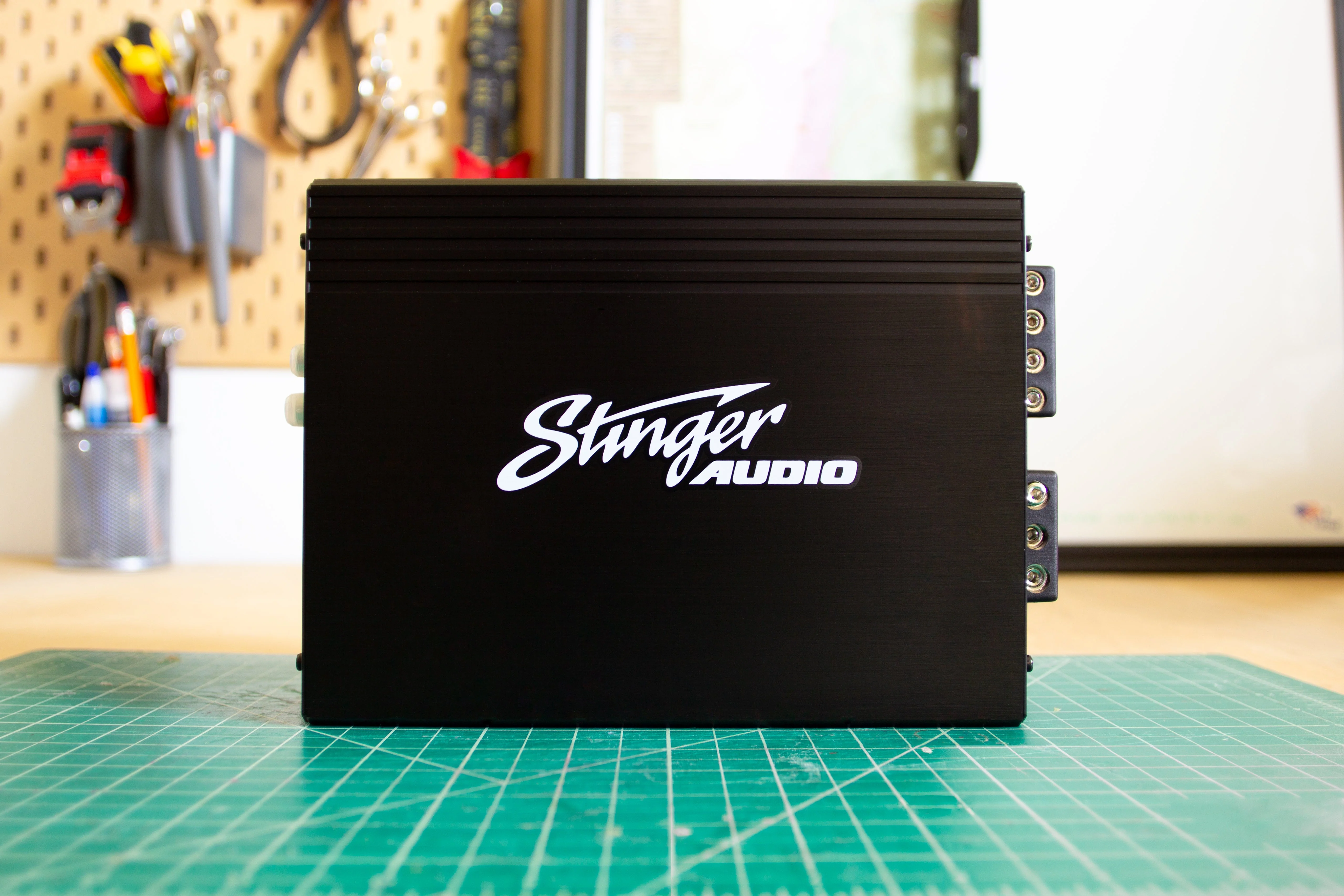

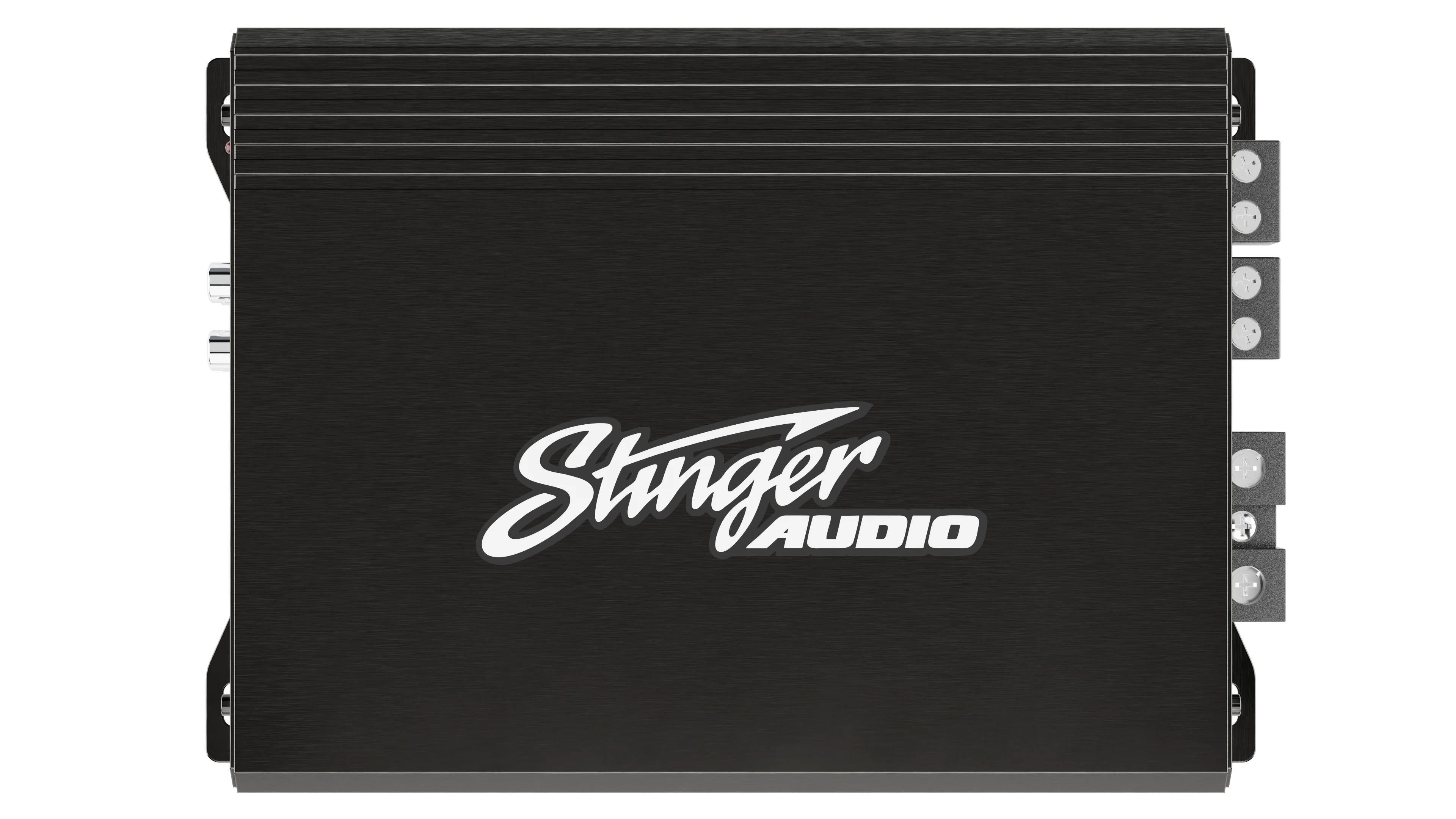

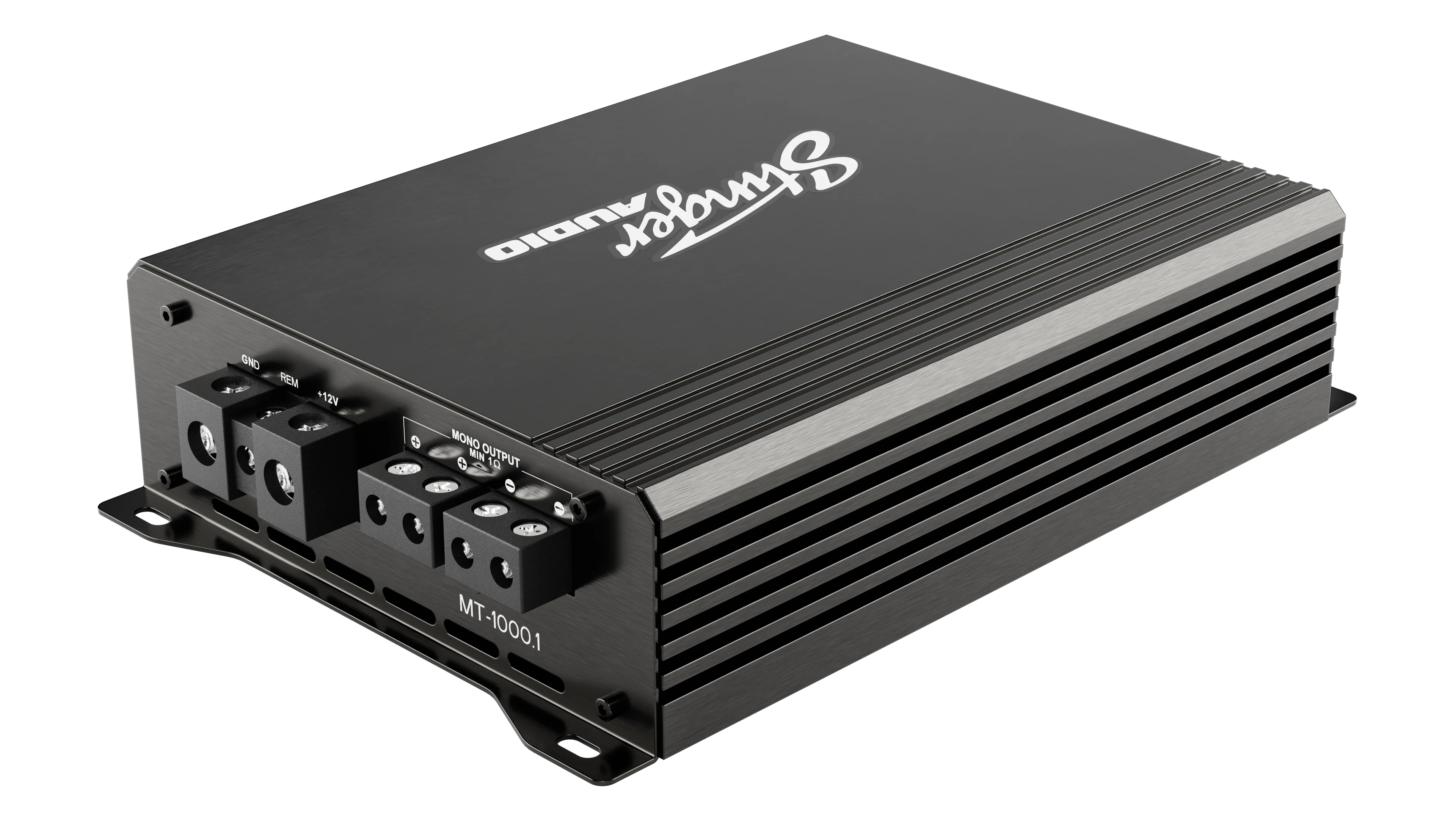

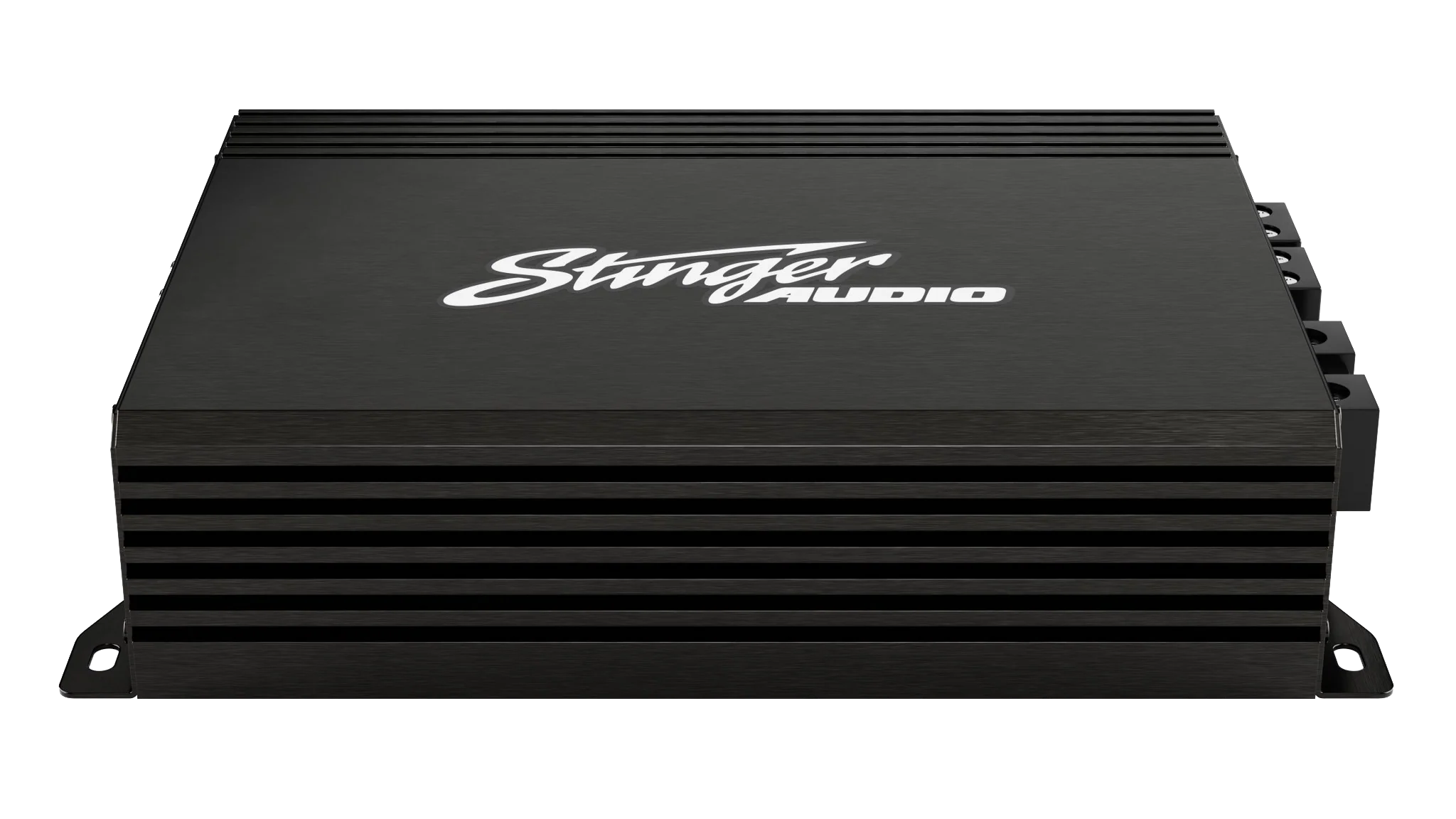

Stinger Audio MT-1000.1 1,000 Watt (RMS) Class D Monoblock Car Audio Amplifier
Product Highlights
Features
-
Digital Class-D Mono Block Amplifier: Delivers powerful performance in a compact size, ensuring efficient and high-quality power for your car audio subwoofer system.
-

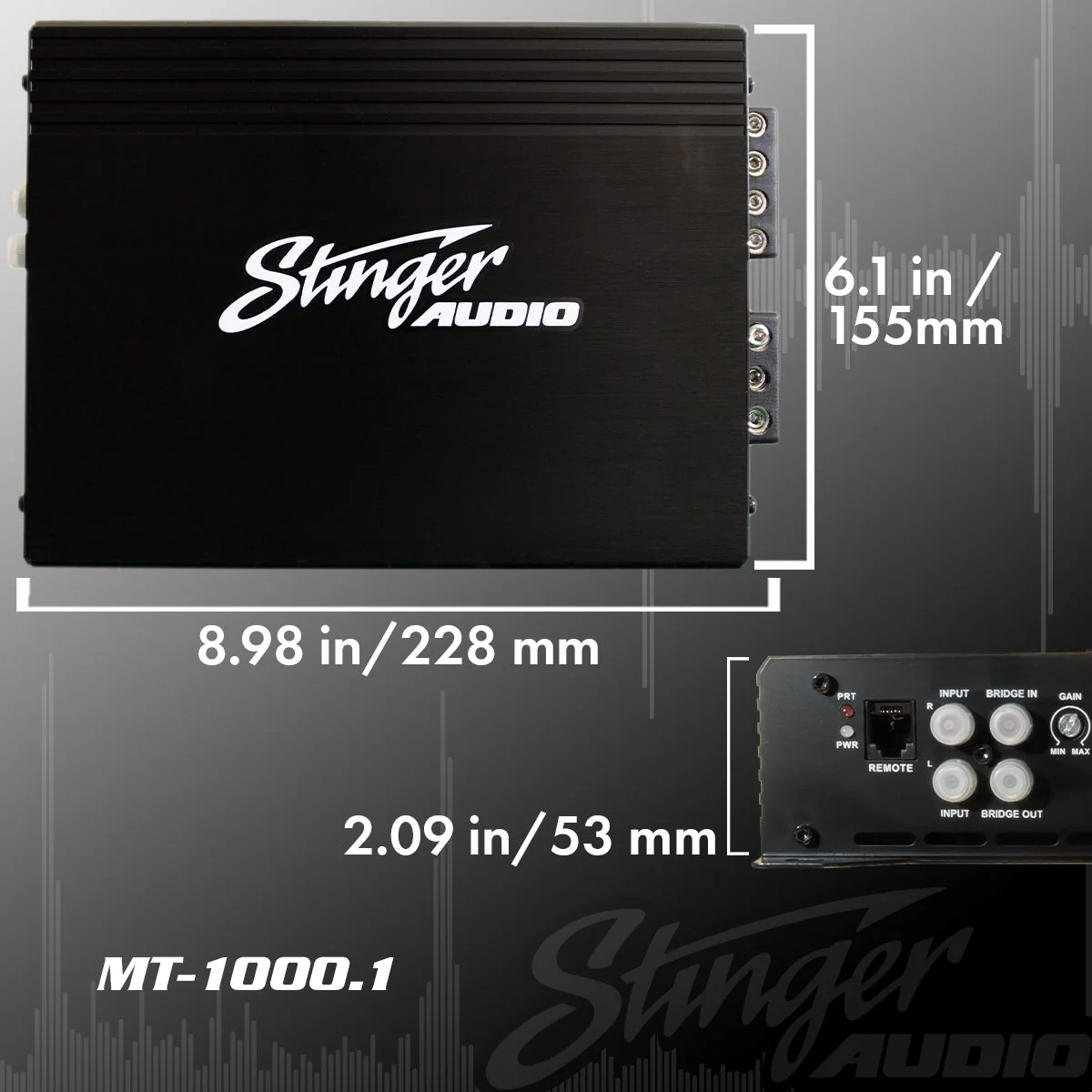

Small Footprint and Sturdy Design: Precise sound control with our durable metal potentiometer, designed for long-lasting reliability and exceptional tonal adjustments.
-
Robust Unregulated Power Supplies: Advanced pulse width modulator integrated circuits in the power supply circuitry offer superior performance and efficiency.
-
Designed with Advanced HEXFET® Power MOSFET: Featuring reduced on-resistance, faster switching speeds, and unmatched reliability.
-
500V High Current Impulse Voltage Capacitor: Provides protection for the MOSFET with low loss AC peak surge over-current ability.
-

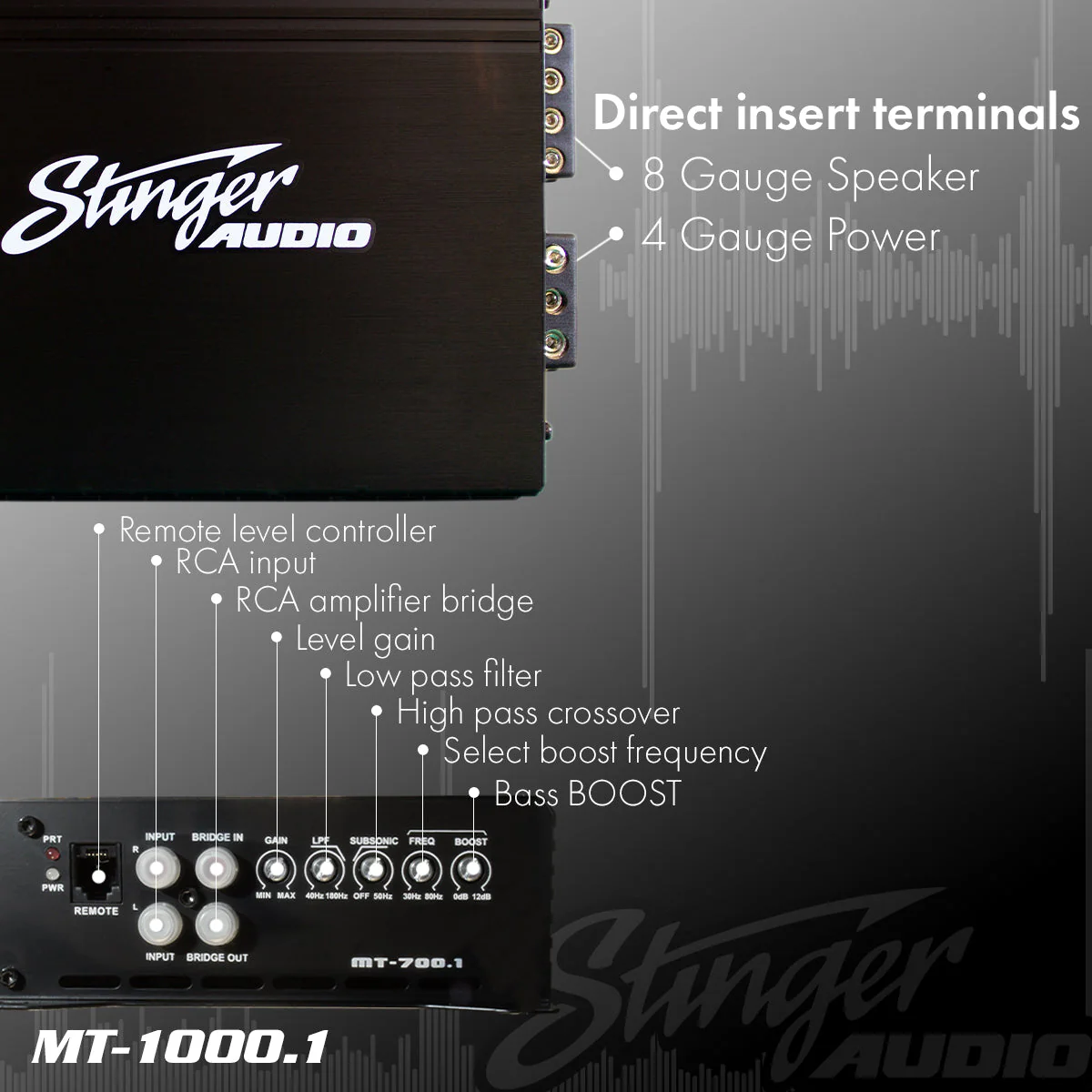

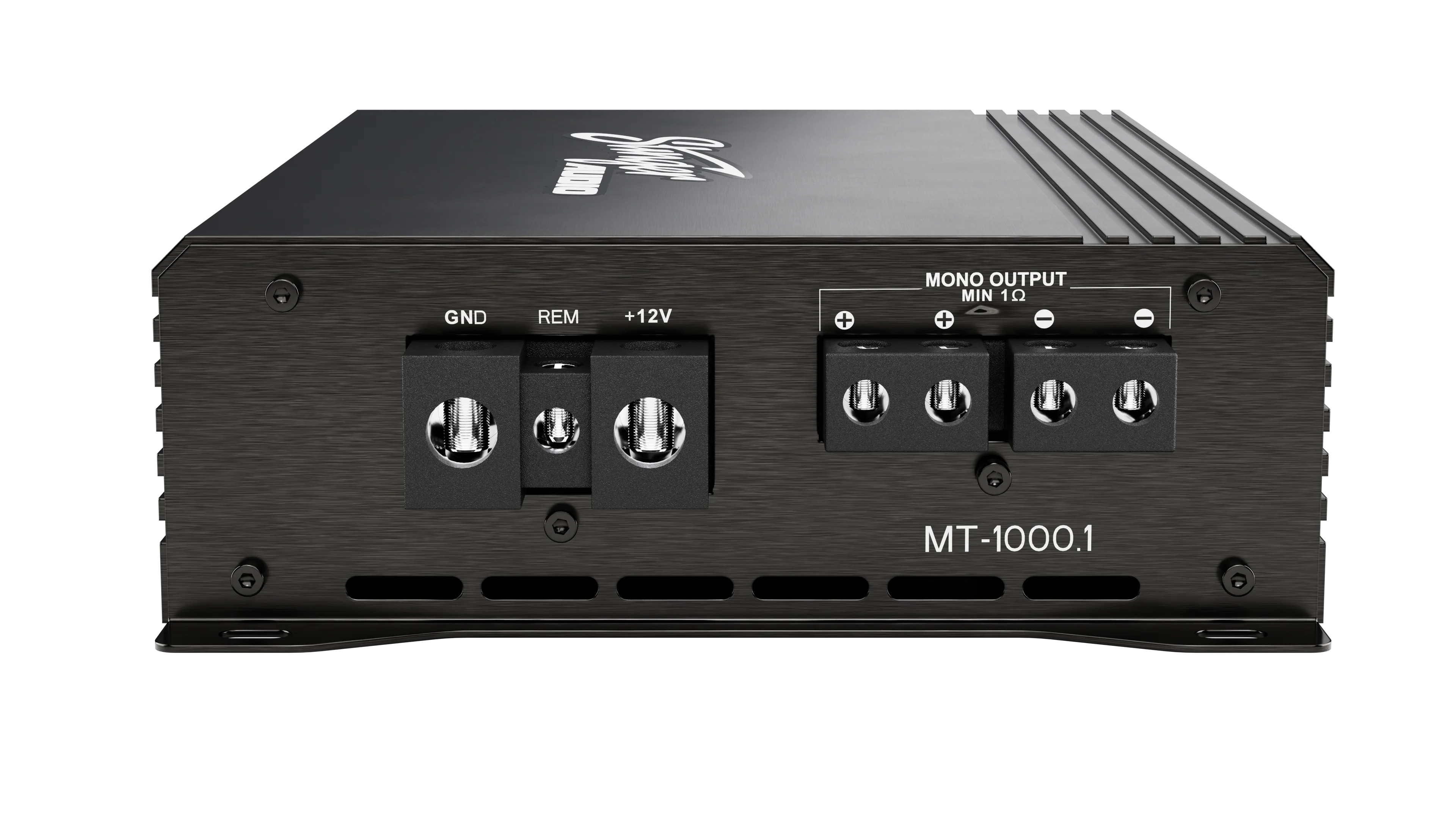

Direct Insert Power and Speaker Terminals: Decreased resistance for higher power transfer and efficiency.

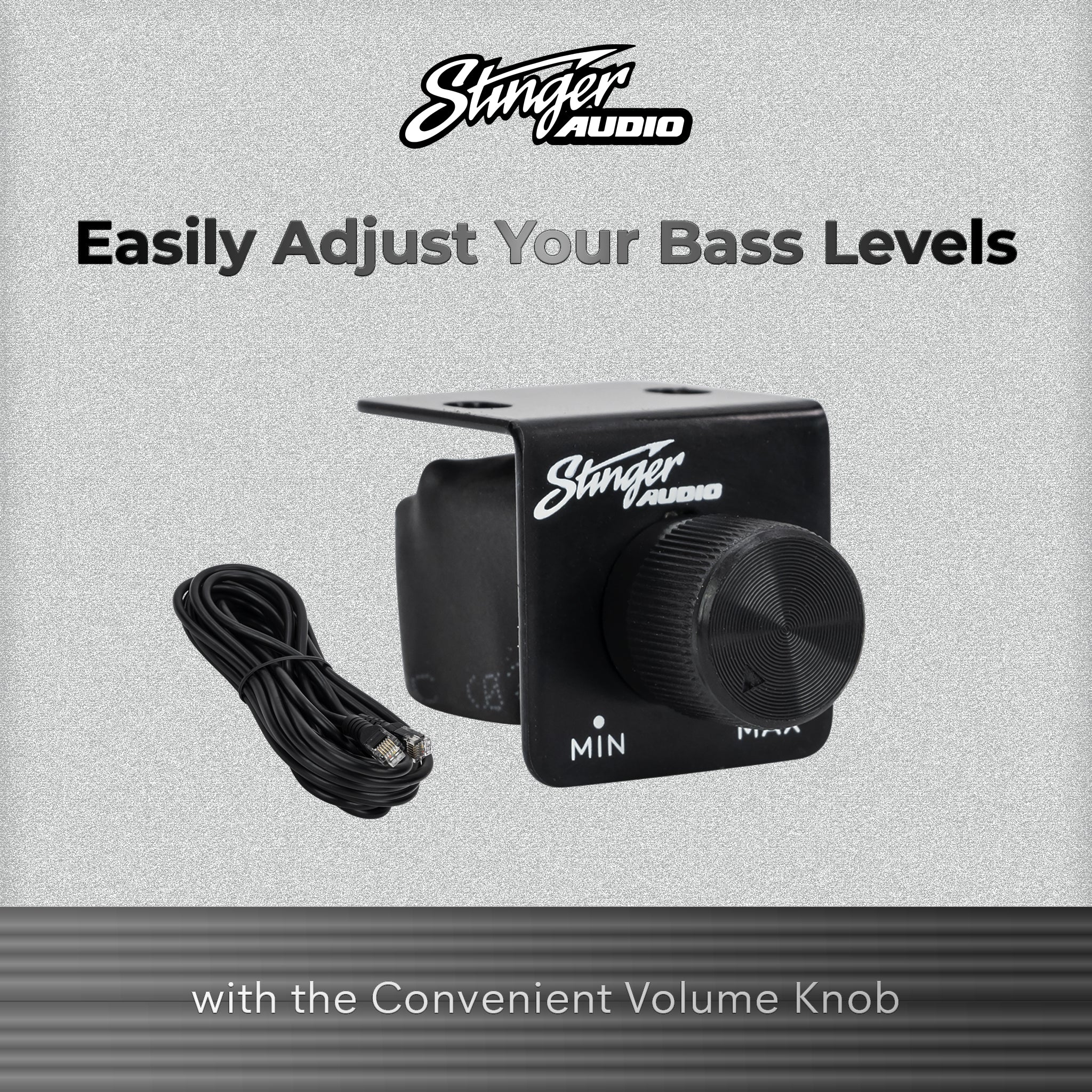

- Remote Bass Controller: Enjoy convenient audio control from your driver's seat, allowing you to effortlessly adjust bass levels.
Description
Stinger Audio introduces the MT1000.1 Class D Monoblock amplifier! With a sleek and compact design, this amplifier can easily fit into any car audio setup. It features a Class D circuitry that delivers efficient power to your speakers, producing a clean and clear sound that is free from distortion. The MT-1000.1 can deliver up to 1,000-Watts of peak power, making it perfect for powering even the most demanding speakers. Its advanced design utilizes MOSFET technology, top of the line capacitors & transformers in addition to cutting-edge inductors – combined to deliver that extra thump you desire on the go.
RMS: 400W x 1 @ 4 ohms | 700W x 1 @ 2 ohms | 1,000 x 1 @ 1 ohm
What's In The Box
- 1,000 Watt Class D Monoblock Amplifier
- Remote bass control and cable
- Remote bass control mounting bracket
- User Guide
- Troubleshoot Guide
Guides
Specifications
| Model Number | MT-1000.1 |
| Number of Channels | 1 |
| 1Ω | 1000 Watts x 1 Channel |
| 2Ω | 700 Watts x 1 Channel |
| 4Ω | 400 Watts x 1 Channel |
| Bridged RMS Rating / 2Ω Minimum | 1800W x 1 |
| Signal to Noise (@ CEA Standard) | -93db |
| Input Sensitivity | 0.2-6v |
| Gain | 0.2v - 6v |

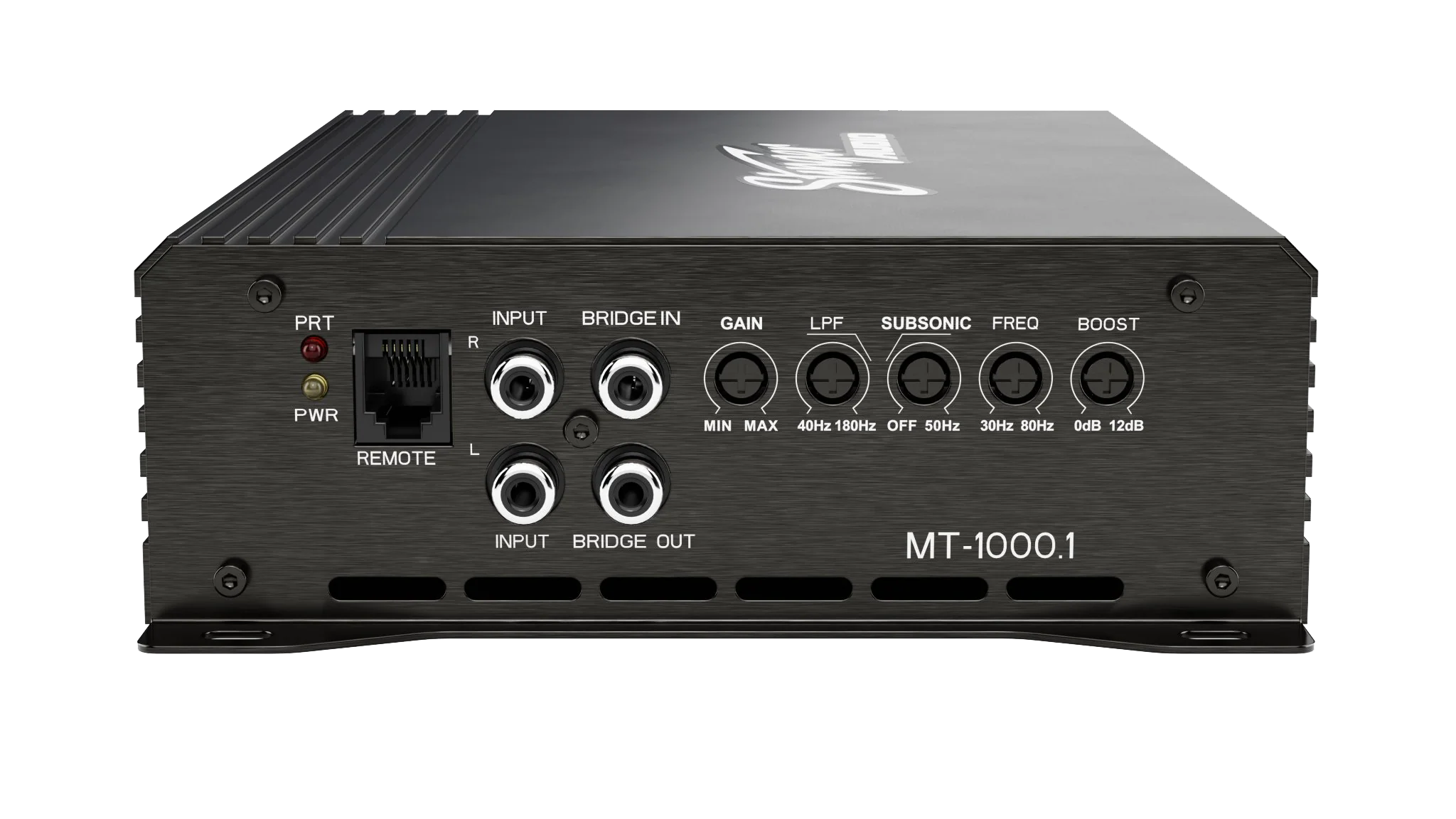

| Crossover Control, Linkwitz-Riley | SUB 0Hz - 50Hz (Subsonic) LP 40Hz - 180Hz @ 12dB/Oct |
| Bass-Boost Frequency Range | 30-80 Hz |
| Bass-Boost Q | 0-12dB |
| Frequency Response (+- 1dB) | 10Hz - 180Hz |
| Efficiency (Average) | 82% |
| Topology Class | Class D |
| Remote Bass Control | Included |
| Operating Voltage | 9V to 16V |
| Power Terminals | 4 Gauge |
| Speaker Terminal | 8 Gauge |
| Recommended External Fusing | 100A |
HEXFET® is a registered trademarks of International Rectifier Corporation.
Warranty Information
We have a 30-day easy return policy for all purchases.
We provide a shipping label for defective products upon your return request at no cost. Non-defective products will not receive a shipping label and the consumer will be responsible for all shipping costs.
Stinger products are warrantied against defects in materials One (1) Year from purchase date. Stinger will, at its discretion, replace any products that exhibit defects in materials and/or workmanship during the warranty period. Assessments of defective parts are performed before replacements are shipped or refunds are released.
Please hold on to your order confirmation! All warranty service requires original sales receipt documentation with Order Number. The warranty only applies to the original purchaser.
Note: Products purchased from unauthorized dealers are not covered under warranty.
Warranty Limitations
Units found to have physical or liquid damage caused by use abuse or improper installation may be void of warranty.
