• Digital Class-D Mono Block Amplifier: Delivers powerful performance in a compact size, ensuring efficient and high-quality power for your car audio subwoofer system.


• Small Footprint and Sturdy Design: Precise sound control with our durable metal potentiometer, designed for long-lasting reliability and exceptional tonal adjustments.

• Robust Unregulated Power Supplies: Advanced pulse width modulator integrated circuits in the power supply circuitry offer superior performance and efficiency.


• Designed with Advanced HEXFET® Power MOSFET: Featuring reduced on-resistance, faster switching speeds, and unmatched reliability.


• 500V High Current Impulse Voltage Capacitor: Provides protection for the MOSFET with low loss AC peak surge over-current ability.

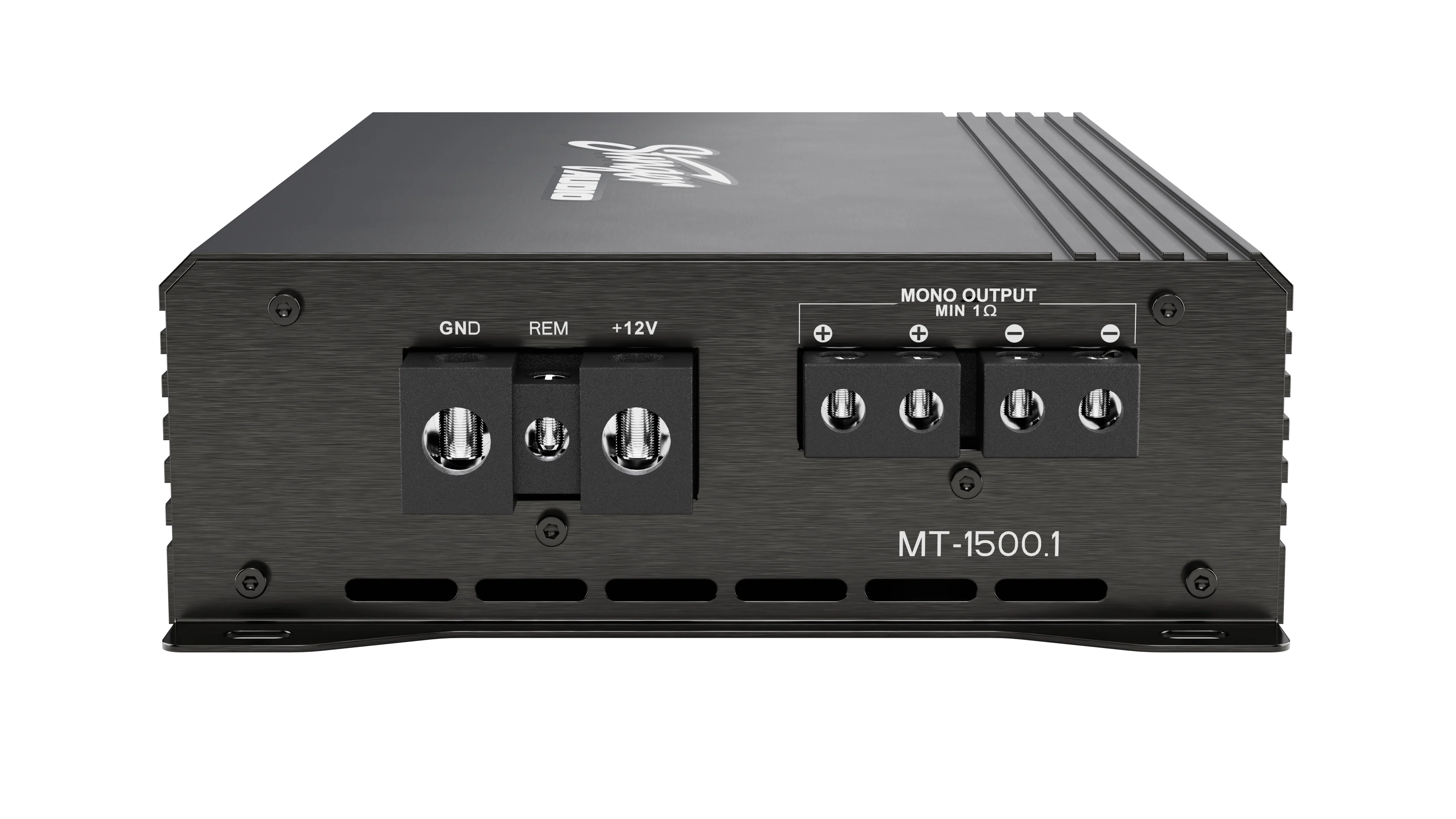

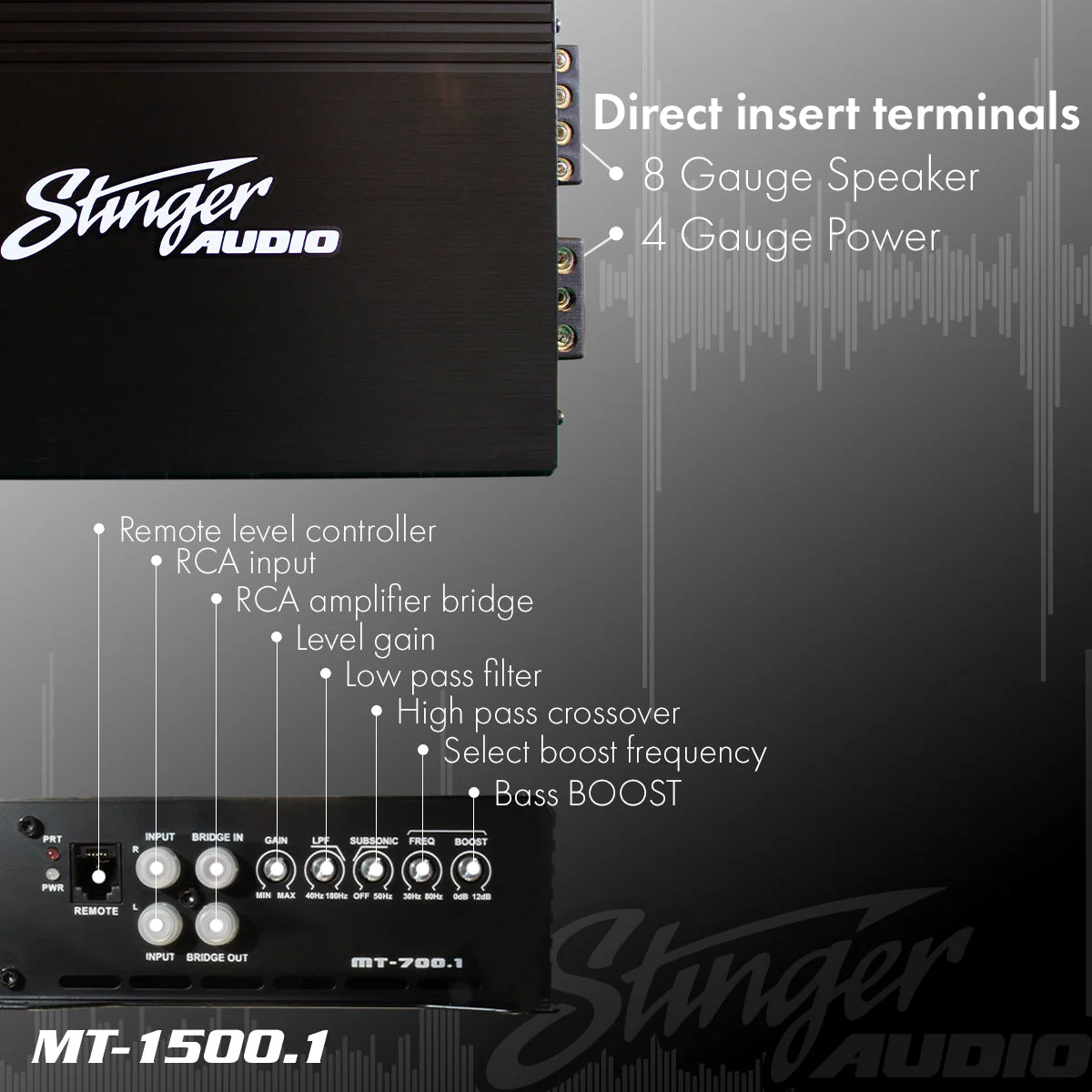

• Direct Insert Power and Speaker Terminals: Decreased resistance for higher power transfer and efficiency.

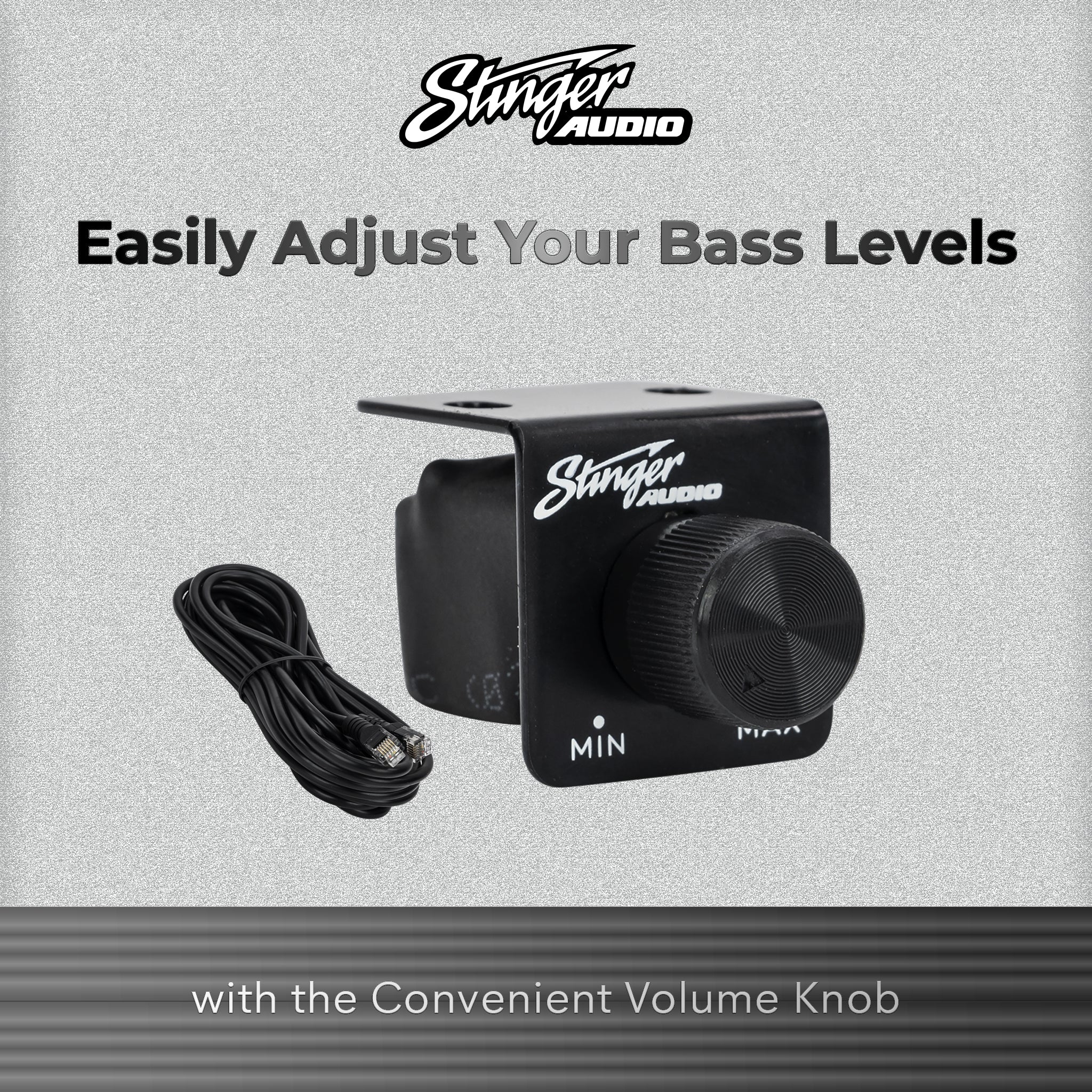

• Remote Bass Controller: Enjoy convenient audio control from your driver's seat, allowing you to effortlessly adjust bass levels.

Description

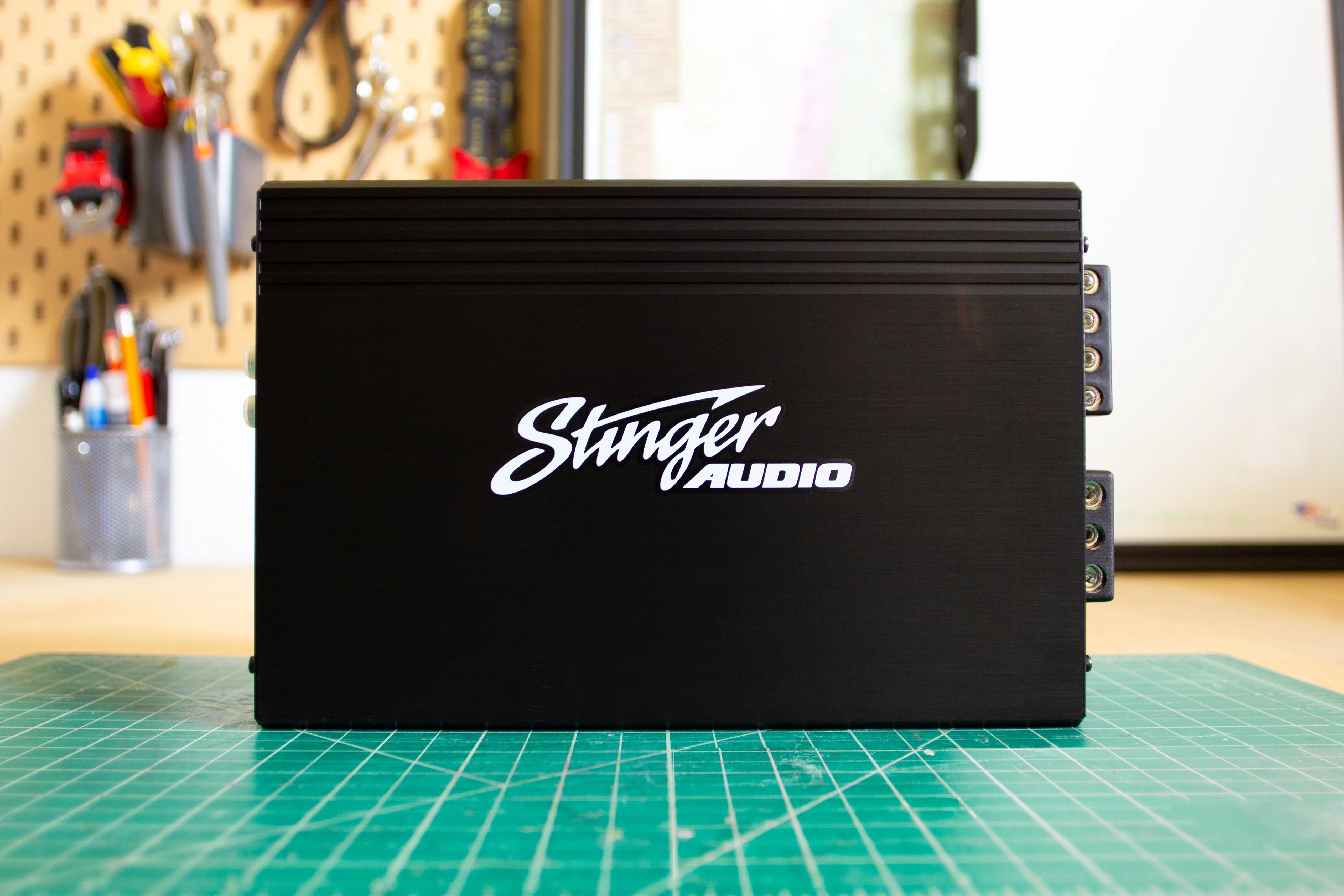

Ready to amp up your audio? Look no further than the Stinger Audio's MT1500.1 Monoblock amplifier! Boasting an impressive 1500-Watts RMS power at 1 ohm, enjoy thumping bass in any vehicle. With robust features such as MOSFET power supply, high-quality capacitors, advanced transformers, and leading-edge inductors you can count on peak performance and reliability with this state of art system. Get your monstrous low end today with no compromises on quality or performance!

RMS: 550W x 1 @ 4 ohms | 1000W x 1 @ 2 ohms | 1500 x 1 @ 1 ohm

What's In The Box

• 1,500 Watt Class D Monoblock Amplifier
• Remote bass control and cable
• Remote bass control mounting bracket
• User Guide
• Troubleshoot Guide

Guides

User Guide

Troubleshoot Guide

Specifications

Model Number	MT-1500.1
Number of Channels	1
1Ω	1500 Watts x 1 Channel
2Ω	1000 Watts x 1 Channel
4Ω	550 Watts x 1 Channel
Bridged RMS Rating / 2Ω Minimum	2800W x 1
Signal to Noise (@ CEA Standard)	-93db
Input Sensitivity	0.2-6v
Gain	0.2v - 6v
Crossover Control, Linkwitz-Riley	SUB 0Hz - 50Hz (Subsonic) LP 40Hz - 180Hz @ 12dB/Oct
Bass-Boost Frequency Range	30-80 Hz
Bass-Boost Q	0-12dB
Frequency Response (+- 1dB)	10Hz - 180Hz
Efficiency (Average)	82%
Topology Class	Class D
Remote Bass Control	Included
Operating Voltage	9V to 16V
Power Terminals	4 Gauge
Speaker Terminal	8 Gauge
Recommended External Fusing	150A

HEXFET® is a registered trademarks of International Rectifier Corporation.

Warranty Information

We have a 30-day easy return policy for all purchases.

We provide a shipping label for defective products upon your return request at no cost. Non-defective products will not receive a shipping label and the consumer will be responsible for all shipping costs.

Stinger products are warrantied against defects in materials One (1) Year from purchase date. Stinger will, at its discretion, replace any products that exhibit defects in materials and/or workmanship during the warranty period. Assessments of defective parts are performed before replacements are shipped or refunds are released.

Please hold on to your order confirmation! All warranty service requires original sales receipt documentation with Order Number. The warranty only applies to the original purchaser.

Note: Products purchased from unauthorized dealers are not covered under warranty.

Warranty Limitations
Units found to have physical or liquid damage caused by use abuse or improper installation may be void of warranty.
