Product Highlights

Features

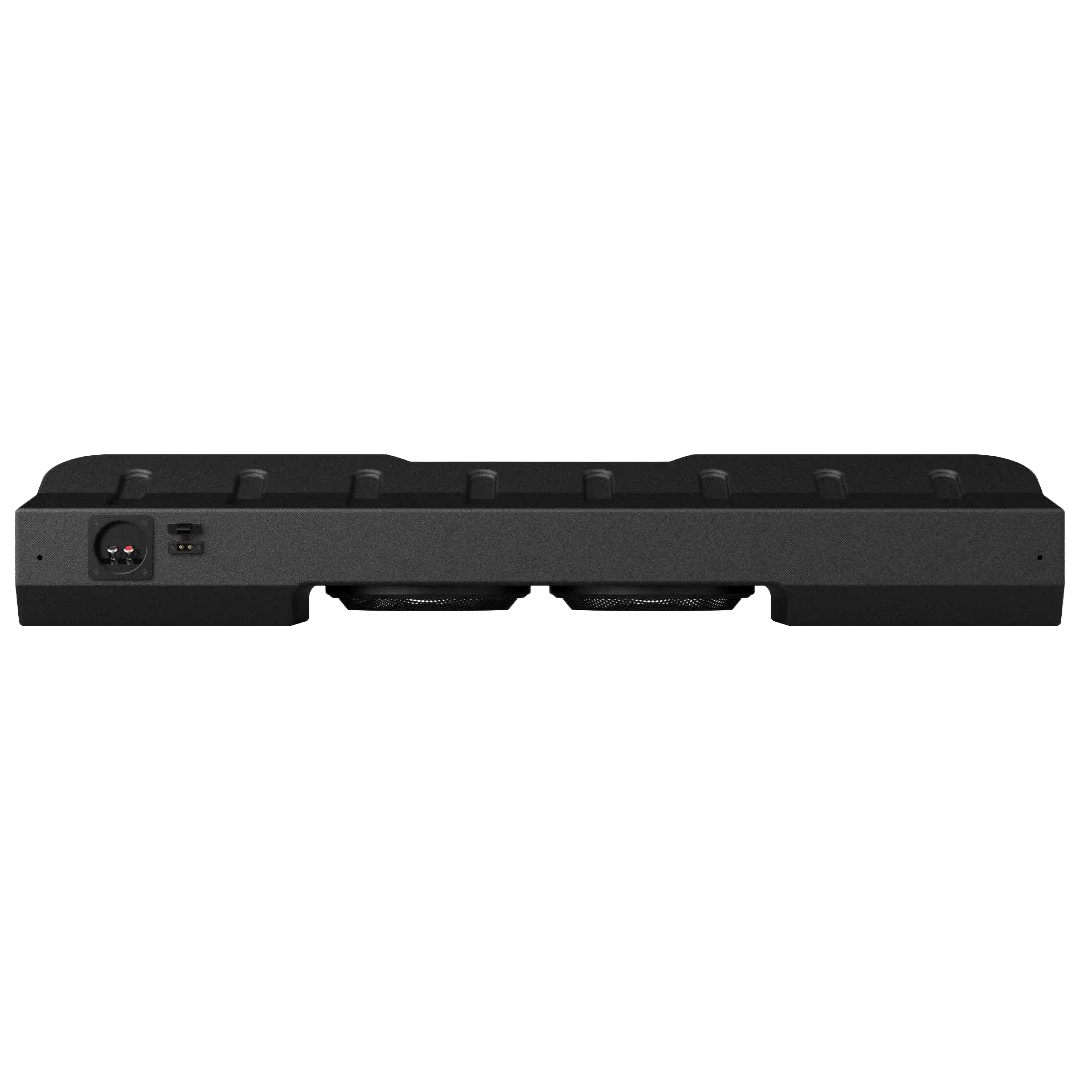

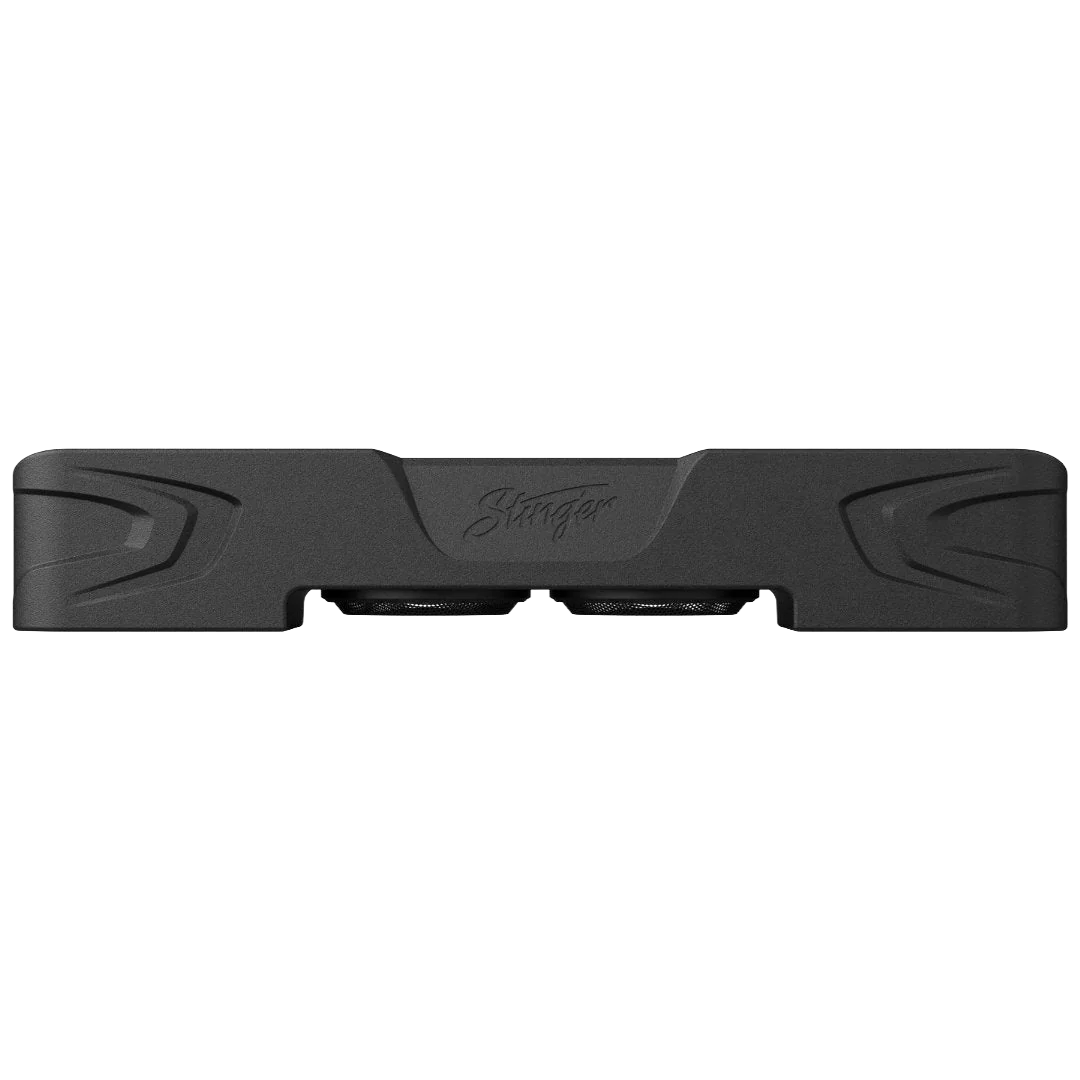

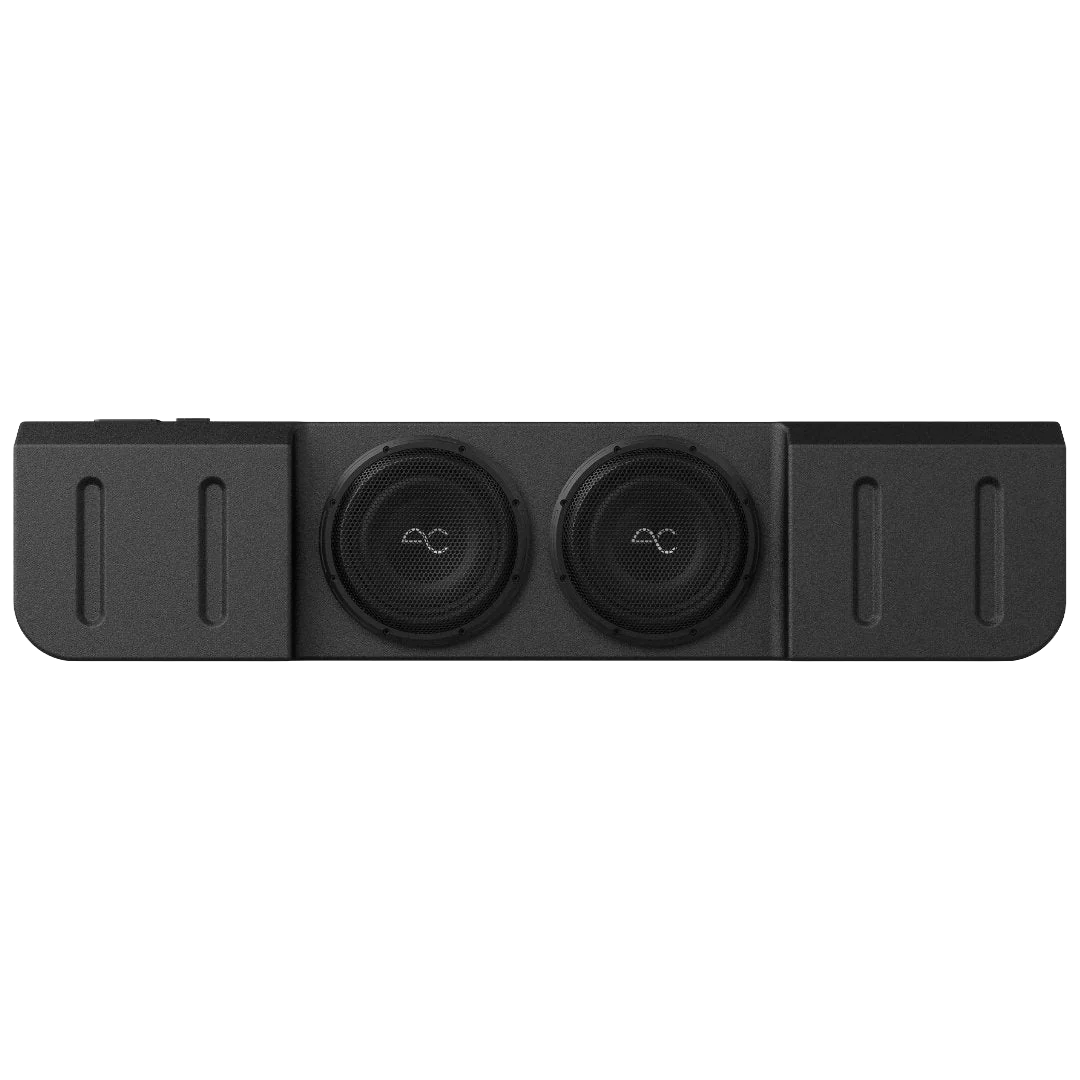

Sealed Subwoofer Enclosure

• Durable Roadkill-Armor Coat: Shields against scratches, cracks, and peels.


• Weather-Resistant Design: Built tough for outdoor use.


• Reduced Resonance: Minimizes unwanted vibrations for clearer sound.


• Stain and Chemical Protection: Guards against spills and stains.


• Impact Absorption: Absorbs shocks for added durability.


• UV and Corrosion Protection: Prevents damage from sunlight and moisture.


• Reinforced Construction: Made with heavy-duty fiberglass and internal bracing.


• Improved Sound Quality: Includes poly-fill for more precise audio.


• Steel Subwoofer Grille: Coated for extra protection.


• Easy Disconnect Option: XT-90 connector for quick setup and removal.

Space Series 10" Subwoofers

• Maximum Bass in Minimal Space: Get powerful bass without sacrificing space, whether in a compact truck or car.


• Rugged, Weather-Resistant Design: Enjoy your music anywhere, without worrying about damage from the elements.


• Heavy-Duty Voice Coil: Experience deeper bass and superior sound quality with our reliable and durable voice coil technology.


• Efficient Thermal Design: Maximize energy efficiency and minimize heat for optimal subwoofer performance.


• Durable Polypropylene Cone: Lightweight, durable construction for accurate, full low-frequency sound reproduction.

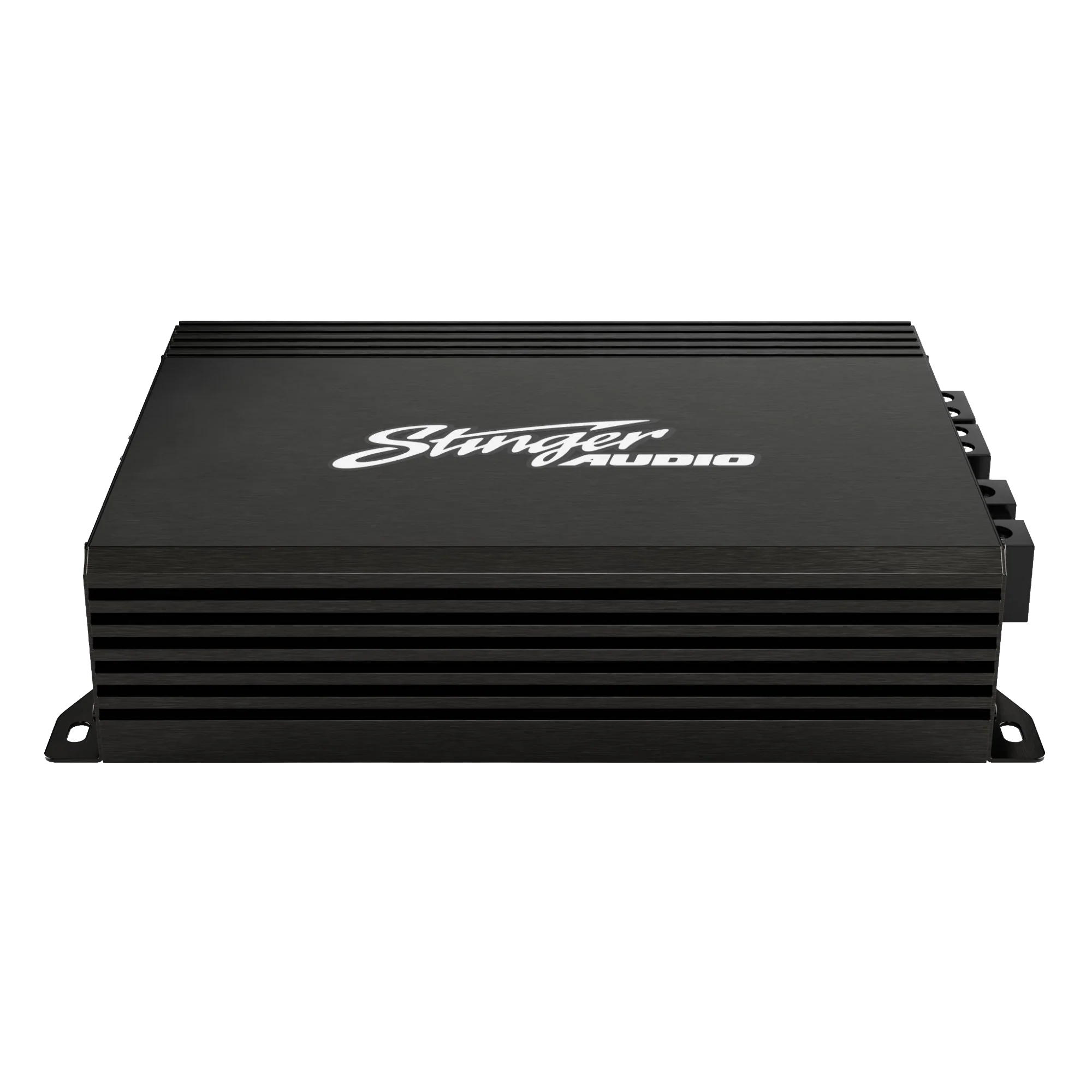

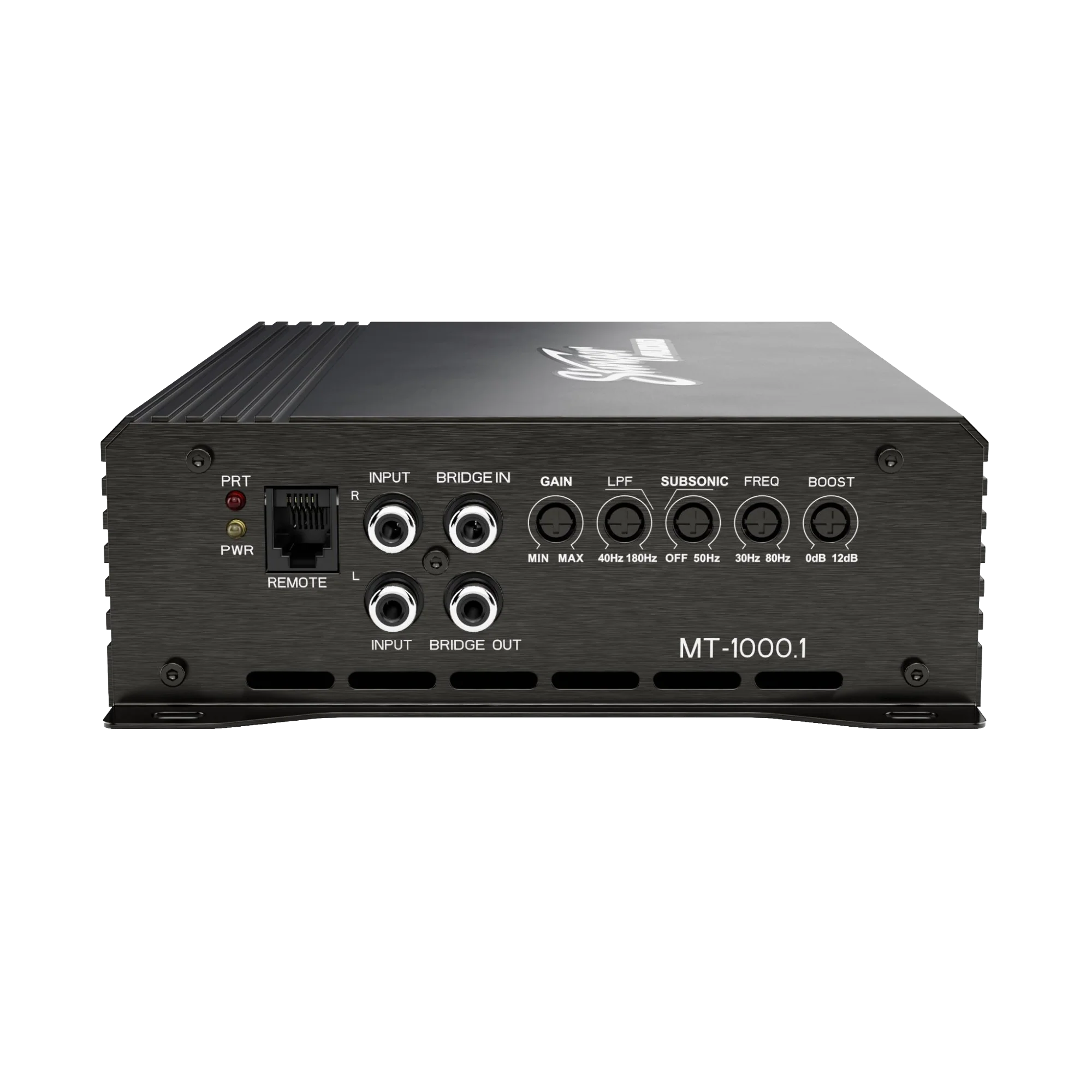

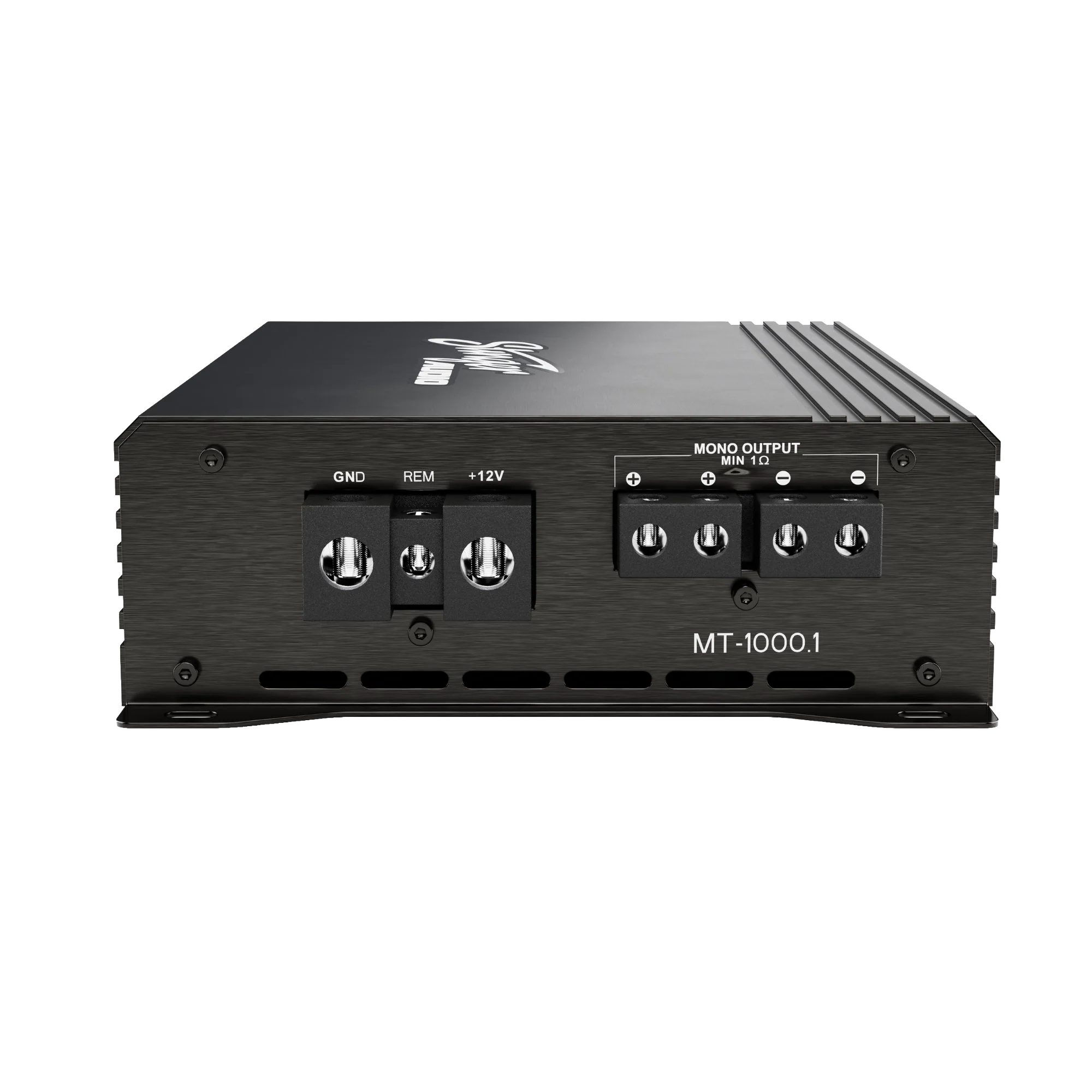

MT-1000.1 Monoblock Amplifier

• Powerful Performance: Class-D Mono Block amplifier delivers efficient, high-quality power for car subwoofer systems.


• Durable & Precise Sound Control: Features a sturdy metal potentiometer for reliable, smooth tonal adjustments.


• Efficient Power Supply Design: Unregulated power supplies with advanced circuitry ensure optimal performance.


• Advanced HEXFET® MOSFET Technology: Enhances reliability, reduces resistance, and supports faster switching.


• Enhanced Audio Control: Remote bass controller provides in-car, on-the-fly bass level adjustments.

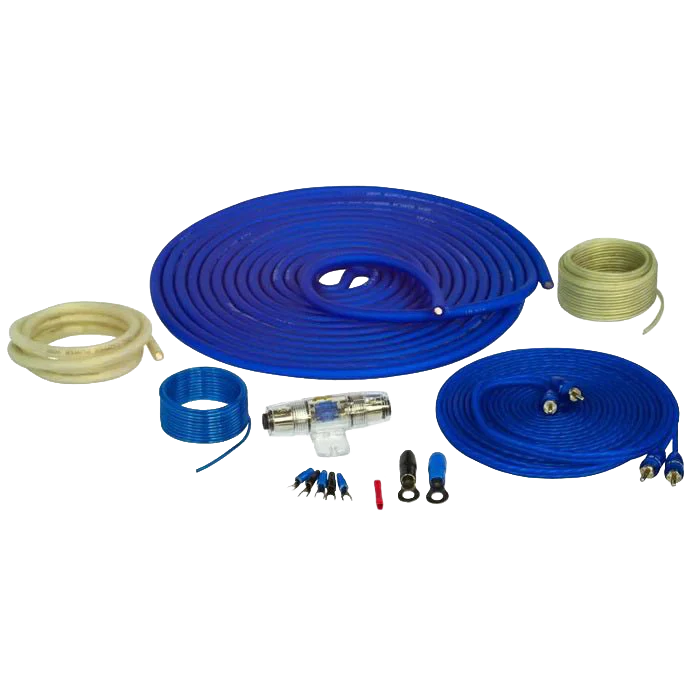

4GA 1200 Watt Complete Amplifier Copper Wiring Kit

• Full Copper Construction: This copper wire is able to efficiently transmit electricity, ensuring high performance and reliability.


• Quality Twisted Pair Interconnects: Designed to provide reliable overcurrent protection, ensuring your devices and equipment remain safe from damage caused by power surges or short circuits.


• Professional-Grade Components: Carefully designed interconnects to provide exceptional signal transfer, eliminating any unwanted noise or interference.


• Easy Installation: Everything you need to get started and an installation guide are included to simplify the process.

Description

Elevate your Ford F-150’s audio game with this premium bundle featuring dual 10" Space Series subwoofers, a 1000W MT-1000.1 monoblock amplifier, and a complete 4GA copper wiring kit. The rugged ported enclosure, coated in durable Roadkill-Armor, offers weather resistance, impact absorption, and reduced resonance for crystal-clear sound. The Space Series subwoofers deliver maximum bass in minimal space, with a polypropylene cone and efficient thermal design for deep, accurate low frequencies. Paired with the high-performance Class-D amplifier featuring advanced HEXFET® MOSFET technology and a remote bass controller, this bundle ensures powerful, precise audio. The professional-grade wiring kit guarantees easy installation and reliable power transfer, making this the ultimate sound upgrade for your truck. Compatible years: Ford F-150 Super Crew 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023 & Ford F-250/F-350 Super Duty Crew 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024.

What's in the Box

• (2) Loaded AudioControl 10" Subwoofers (SPC-10S4)

• Pre-Assembled Subwoofer Enclosure

• Mounting Hardware

• Subwoofer Enclosure Installation Guide
• 1000 Watt Class D Car Monoblock Amplifier

• Remote Bass Control and Cable

• Remote Bass Control Mounting Bracket and Screws

• Amplifier User Guide

• Amplifier Troubleshoot Guide
• Complete Amp Wiring Kit

Specifications

Space Series 10" Subwoofers

Model Number	TXFF15D10
Speaker Model	SPC-10S4
Subwoofer Size	Dual 10”
Voice Coil	Single 4 ohm
Sensitivity 1W/M (SPL)	87 dB
Frequency Response	20Hz - 250Hz
RMS Power	Min 400w - Ideal 800w
Peak Power	1200 watts

Enclosure Specifications

Total Weight	49.4 lbs
Height	8.7 in
Width	51 in
Depth	11.75 in

MT-1000.1 Monoblock Amplifier

Model Number	MT1000.1
Number of Channels:	1
1Ω:	1000 Watts x 1 Channel
2Ω:	700 Watts x 1 Channel
4Ω	400 Watts x 1 Channel
Bridged RMS Rating / 2Ω Minimum	1800W x 1
Signal to Noise (@ CEA Standard)	-93db
Input Sensitivity 0.2-6v	0.2-6v
Gain	0.2v - 6v
Crossover Control, Linkwitz-Riley	SUB 0Hz - 50Hz (Subsonic) LP 40Hz - 180Hz @ 12dB/Oct
Bass-Boost Frequency Range	30-80 Hz
Bass-Boost Q	0-12dB
Frequency Response (+- 1dB)	10Hz - 180Hz
Efficiency (Average)	82%
Topology Class:	Class D
Remote Bass Control	Included
Operating Voltage	9V to 16V
Power Terminals:	4 Gauge
Speaker Terminal:	8 Gauge
Recommended External Fusing	100A

HEXFET® is a registered trademarks of International Rectifier Corporation.

4GA 1200 Watt Complete Amplifier Copper Wiring Kit

Model Number	SS1200XS
Size	4 GA
Power	1200 Watt
Translucent Blue Power Wire	17FT
Translucent Silver Ground Wire	3FT
Translucent Blue Twisted Pair RCA Interconnect	17FT
Blue Remote Turn-on Wire	16FT
Translucent Speaker Wire	20FT



Vehicle Fitment Guide

Year	Make	Model	Submodel
2015-2023	FORD	F-150	ALL TRIM LEVELS
2017-2024	FORD	F-250	SUPER DUTY
2017-2024	FORD	F-350	SUPER DUTY

Warranty Information

We have a 30-day easy return policy for all purchases.

We provide a shipping label for defective products upon your return request at no cost. Non-defective products will not receive a shipping label, and the consumer will be responsible for all shipping costs.

Stinger products are warrantied against defects in materials One (1) Year from purchase date. Stinger will, at its discretion, replace any products that exhibit defects in materials and/or workmanship during the warranty period. Defective parts are assessed before replacements are shipped or refunds are released.

Please hold on to your order confirmation! All warranty service requires original sales receipt documentation with the Order Number. The warranty only applies to the original purchaser.

Note: Products purchased from unauthorized dealers are not covered under warranty.

Warranty Limitations
Units found to have physical or liquid damage caused by use abuse or improper installation may be void of warranty.
