Product Highlights

Features

12" or 10" Loaded Vented Subwoofer Enclosure Box

• Deep & Powerful Bass: This 700W RMS/1200W Max Single 12" or 10" Subwoofer Enclosure features CFL³ Technology Voice Coils, MLB Collar Technology, Fiber Matrix Paper Cones, and Durable Sound Material which ensures exceptional longevity and crystal clear sound even at high volumes.


• Flexibility in Placement: This subwoofer enclosure is the perfect size for most vehicles; it can be placed in various locations, such as the trunk or back of an SUV without taking up too much space.


• Customizability: The Stinger Audio subwoofers allow you to adjust the bass level to your personal taste, giving you more control over the overall sound of your vehicle's audio system.

700W (RMS) Class D Monoblock Subwoofer Amplifier

• Digital Class-D Mono Block Amplifier: Delivers powerful performance in a compact size, ensuring efficient and high-quality power for your car audio subwoofer system!


• Small Footprint and Sturdy Design: Precise sound control with our durable metal potentiometer, designed for long-lasting reliability and exceptional tonal adjustments.

• Robust Unregulated Power Supplies: Advanced pulse width modulator integrated circuits in the power supply circuitry offer superior performance and efficiency.


• Designed with Advanced HEXFET® Power MOSFET: Featuring reduced on-resistance, faster switching speeds, and unmatched reliability.


• Remote Bass Controller: Enjoy convenient audio control from your driver's seat, allowing you to effortlessly adjust bass levels.

OFC Amplifier Wiring Kit

• Full Copper Construction: This copper wire is able to efficiently transmit electricity, ensuring high performance and reliability.


• Quality Twisted Pair Interconnects: Designed to provide reliable overcurrent protection, ensuring your devices and equipment remain safe from damage caused by power surges or short circuits.


• Professional-Grade Components: Carefully designed interconnects to provide exceptional signal transfer, eliminating any unwanted noise or interference.

Description

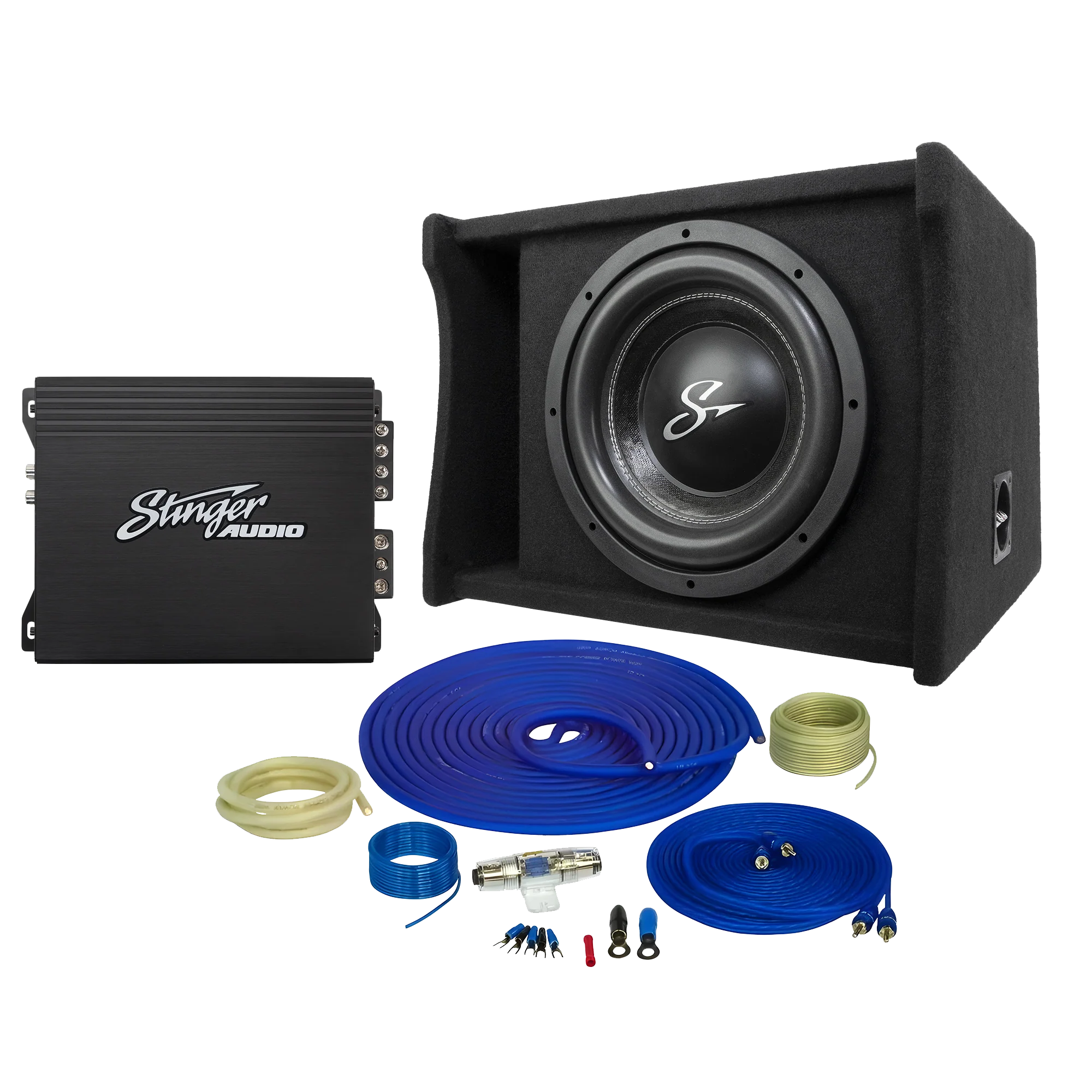

Upgrade your vehicle's sound system with the Stinger Audio Party Pack - a complete subwoofer bass package. Experience deep and powerful bass with a 12-inch or 10-inch loaded ported subwoofer box. This package includes a 700W RMS amplifier for increased volume capabilities and distortion-free sound. Easy installation with included amp wiring kit ensures a hassle-free setup for your new subwoofer box. Elevate every trip in your SUV, car, and more with an immersive and dynamic listening experience!

What's in the Box

• Single 12" or 10" 700 Watt RMS Loaded Vented Subwoofer Enclosure
• 12" Loaded Subwoofer Enclosure User Guide
• 10" Loaded Subwoofer Enclosure User Guide

• 700 Watt RMS Class D Car Monoblock Amplifier
• Amplifier User Guide
• Complete Amp Wiring Kit

Specifications

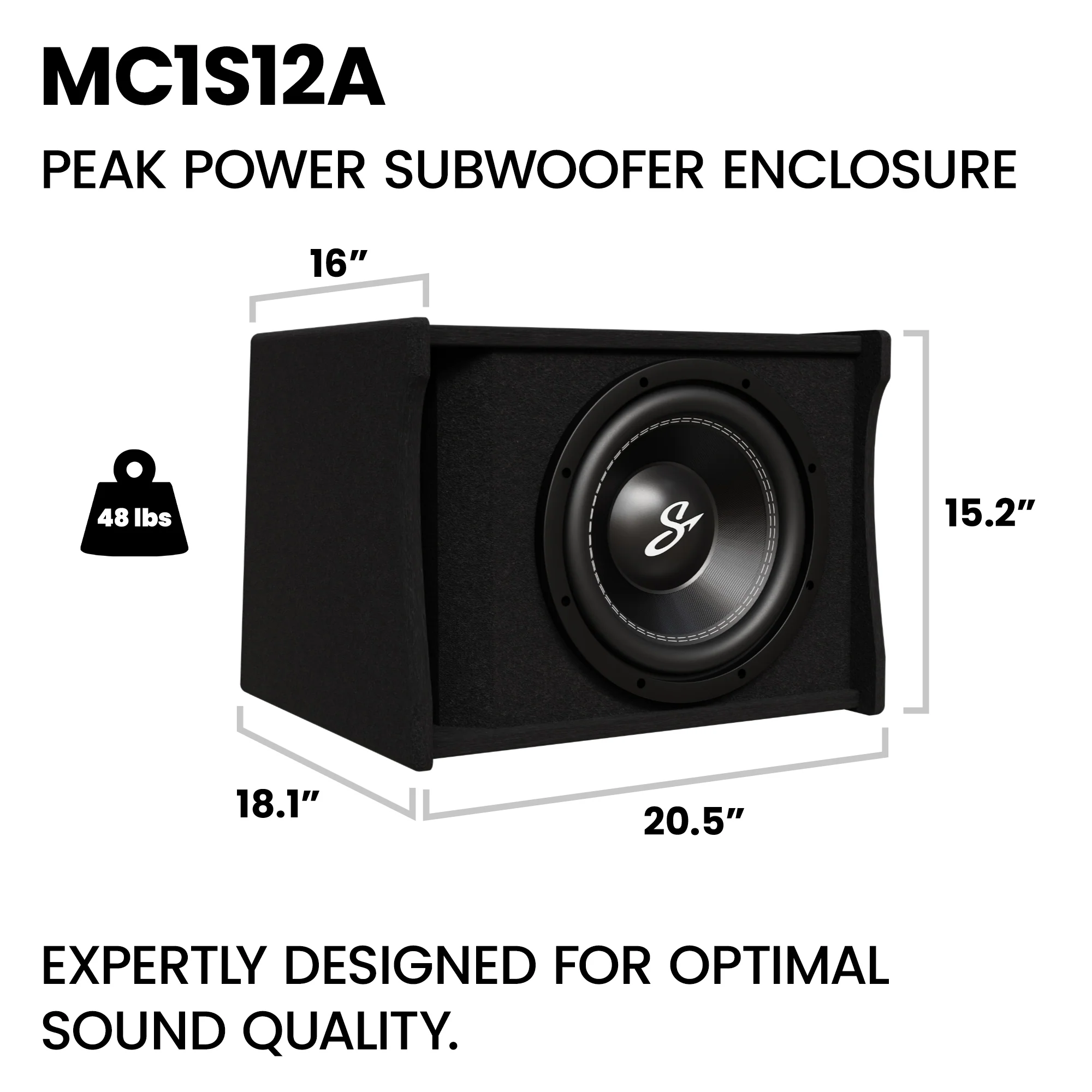

Loaded Subwoofer Enclosure Specifications

Model Number	MC1S12A
Woofer Size	12"
Speakers Per Box	1
Frequency Response	25Hz - 250Hz
Sensitivity	82.5 dB
Enclosure Type	Slot Ported
Enclosure Material	3/4" MDF
Finish	Black Carpet
Width	20.5"
Height	15.2"
Depth 1 (Bottom)	18.1"
Depth 2 (Top)	16"
Weight	48lbs
Connector Type	Spring-Posts
RMS Power	700W
Peak Power	1200W
Final Impedance	1 Ω
Tuning Frequency	35Hz

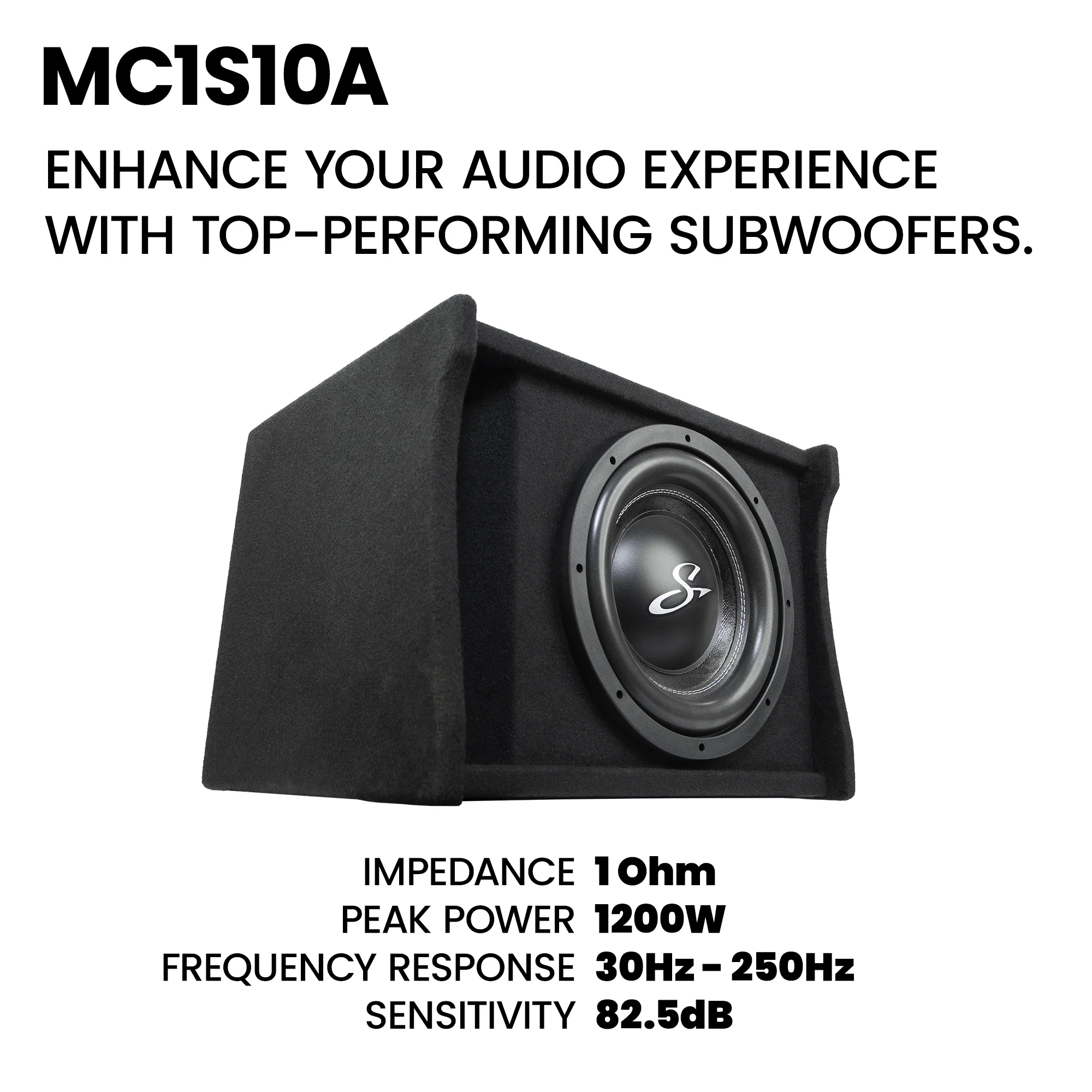

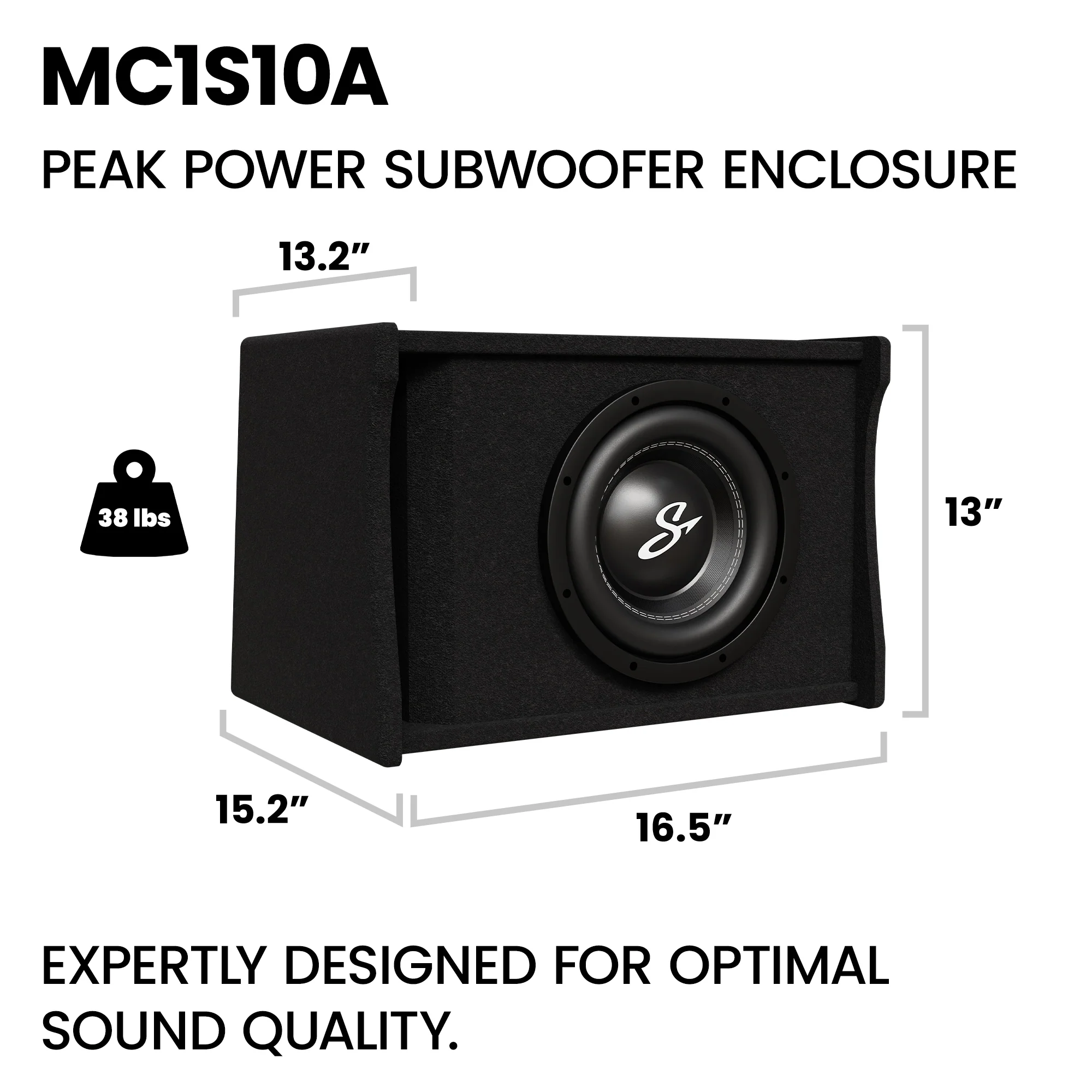

MODEL	MC1S10A
Woofer Size	10"
Speakers Per Box	1
Frequency Response	30Hz - 250Hz
Sensitivity	82.5 dB
Enclosure Type	Slot Ported
Enclosure Material	3/4" MDF
Finish	Black Carpet
Width	16.5"
Height	13"
Depth 1 (Bottom)	15.2"
Depth 2 (Top)	13.2"
Weight	38lbs
Connector Type	Spring-Posts
RMS Power	700W
Peak Power	1200W
Final Impedance	1 Ω
Tuning Frequency	40Hz

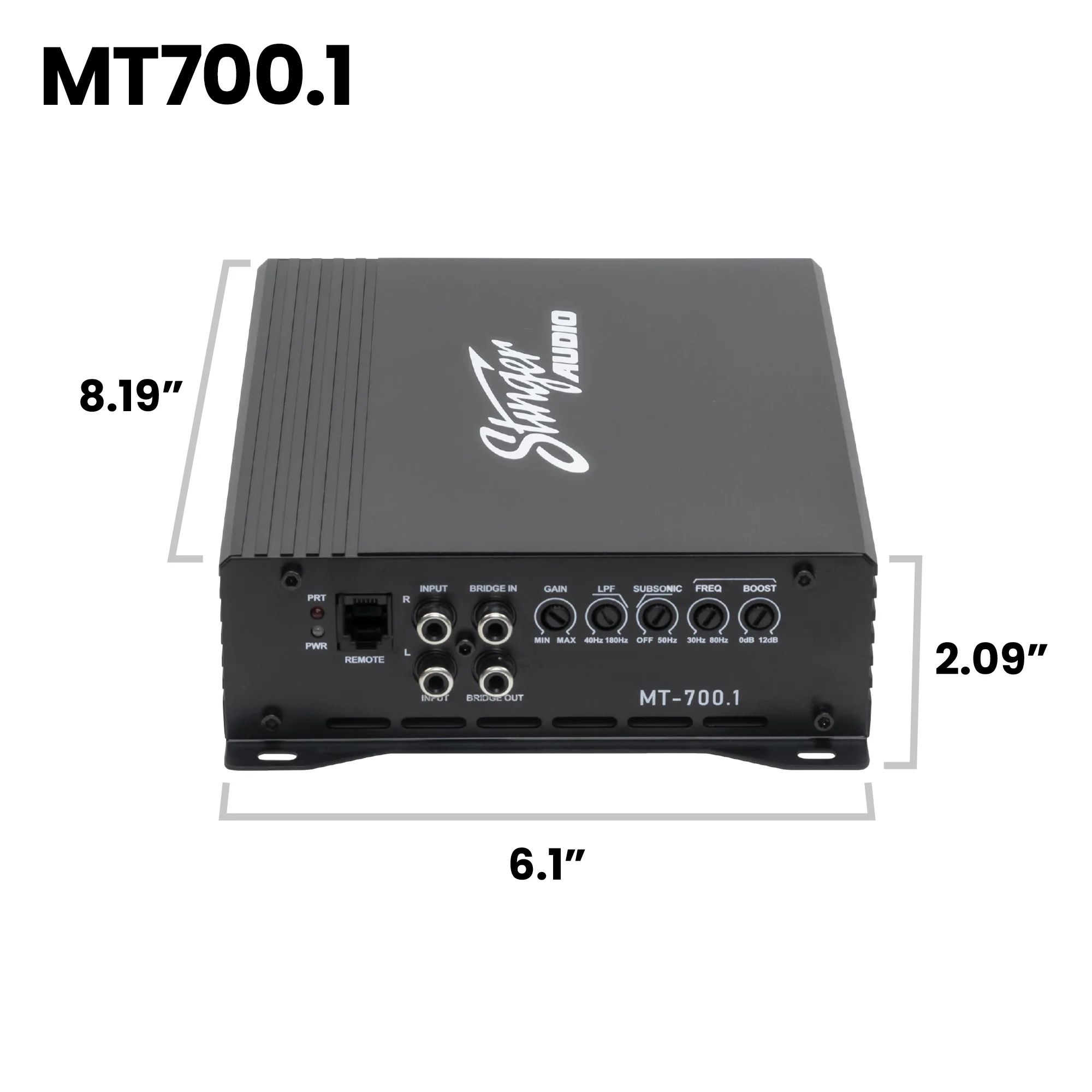

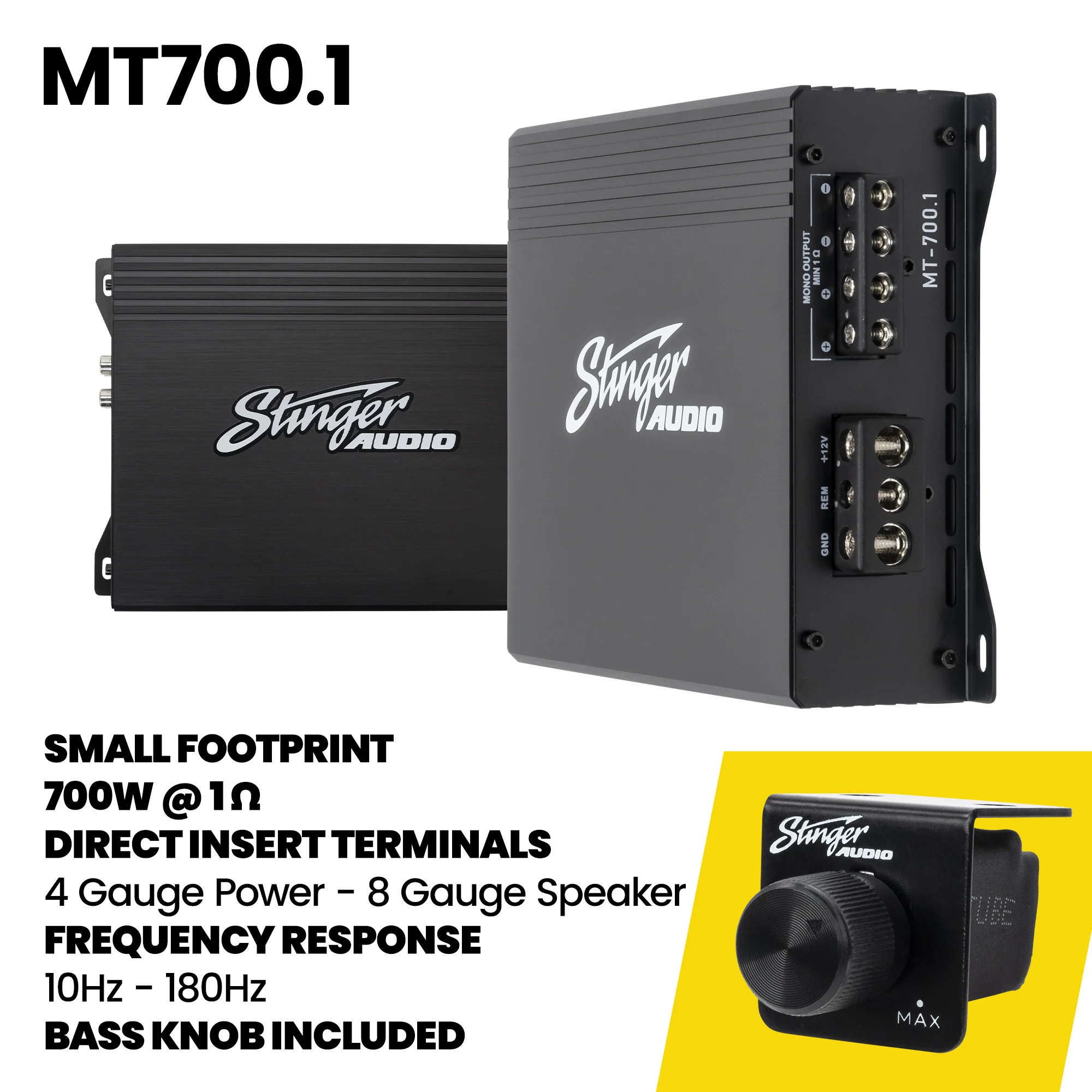

Monoblock Class D Car Amplifier Specifications

Model Number	MT-700.1
Number of Channels:	1
1Ω:	700 Watts x 1 Channel
2Ω:	500 Watts x 1 Channel
4Ω	300 Watts x 1 Channel
Bridged RMS Rating / 2Ω Minimum	1200W x 1
Signal to Noise (@ CEA Standard)	-93db
Input Sensitivity 0.2-6v	0.2-6v
Gain	0.2v - 6v
Crossover Control, Linkwitz-Riley	SUB 0Hz - 50Hz (Subsonic) LP 40Hz - 180Hz @ 12dB/Oct
Bass-Boost Frequency Range	30-80 Hz
Bass-Boost Q	0-12dB
Frequency Response (+- 1dB)	10Hz - 180Hz
Efficiency (Average)	85%
Topology Class:	Class D
Remote Bass Control	Included
Operating Voltage	9V to 16V
Power Terminals:	4 Gauge
Speaker Terminal:	8 Gauge
Recommended External Fusing	80A

HEXFET® is a registered trademarks of International Rectifier Corporation.

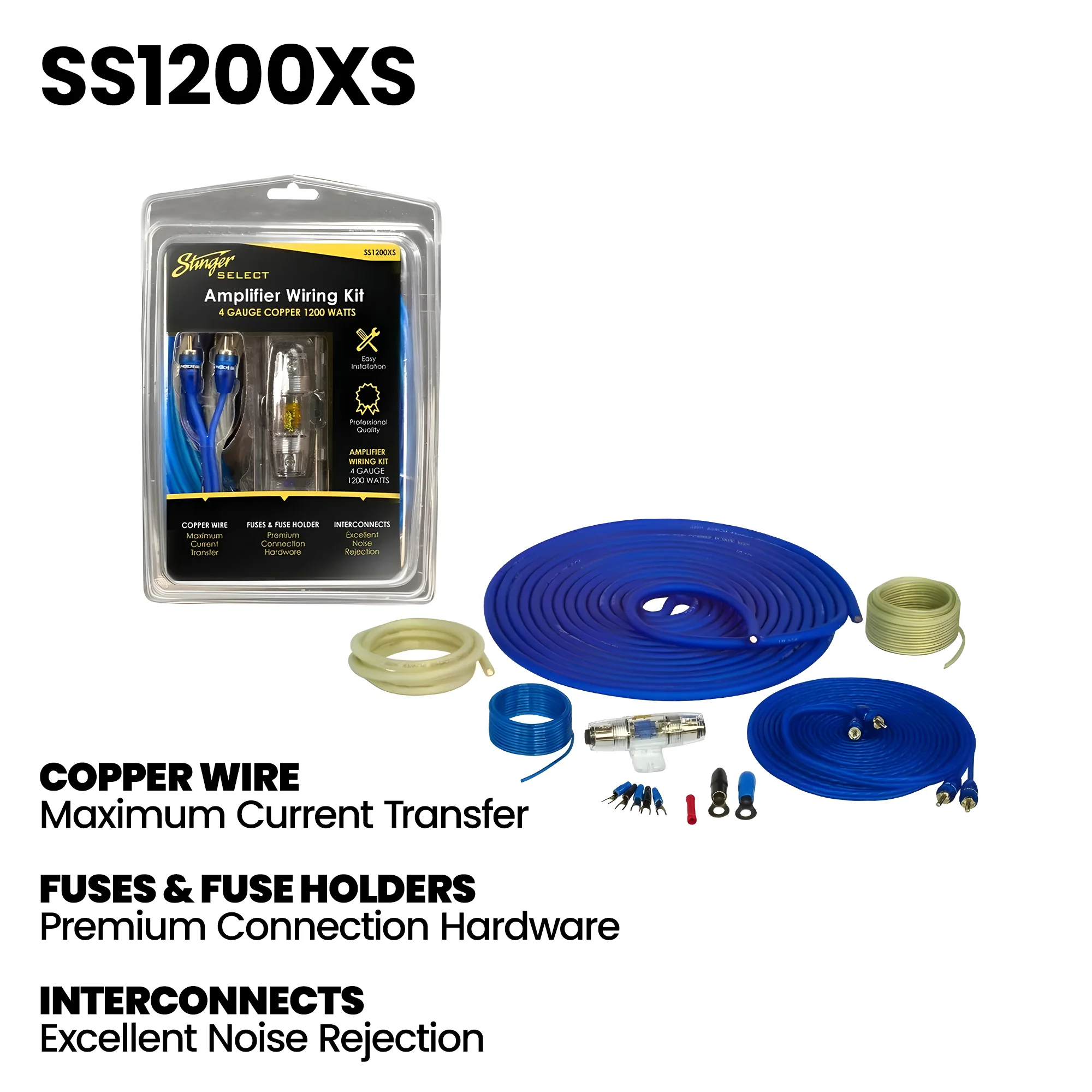

4GA Wiring Kit Specifications

Model Number	SS1200XS
Size	4 GA
Power	1200 Watt
Translucent Blue Power Wire	17FT
Translucent Silver Ground Wire	3FT
Translucent Blue Twisted Pair RCA Interconnect	17FT
Blue Remote Turn-on Wire	16FT
Translucent Speaker Wire	20FT
