Features

Swing Gate-Mount Loaded Enclosure

• Extreme Bass: Push your Jeep's bass to the limit. Experience clean, articulate, goose bump-inducing bass; jam-packed with every musical detail


• Space-Saving Fit: Engineered to overcome the lack of space hurdle where space is a premium,  without compromising power and sound quality


• Weather-Resistant: Designed to withstand harsh outside elements including water, dirt, dust, and debris

700W Monoblock Amplifier

• Digital Class-D Mono Block Amplifier: Perfect for powering your car audio subwoofer system without sacrificing sound quality or performance.


• Small Footprint and Sturdy Design: Experience total tonal control with our precision metal potentiometer, built to the highest standards for lasting reliability.


• Robust Unregulated Power Supplies: Our power supply circuitry utilizes advanced pulse width modulator integrated circuits designed to provide superior performance and unmatched efficiency. Remote Bass Controller Included: Superior audio control from the comfort of your driver's seat. Our flush-mount knob makes installation easy, allowing you to effortlessly adjust bass levels with just one twist.


• Designed with Advanced HEXFET® Power MOSFET: Harness the power of innovative engineering and cutting-edge technology with our advanced HEXFET® Power MOSFET. Boasting reduced on-resistance, faster switching speeds, and unparalleled reliability.


• 500V High Current Impulse voltage capacitor: Special Class X2 aluminum zinc high-frequency capacitor with low loss AC peak surge over-current ability to protect the MOSFET.


• Direct Insert Power and Speaker Terminals: Decreased resistance for higher power transfer and efficiency.



Description

Everything You need to Add Bass to Your Wrangler JL Unlimited

Upgrade your Jeep Wrangler's audio system with our all-in-one subwoofer solution. The AudioControl 12" 400 Watt subwoofer enclosure is meticulously engineered to match your vehicle's tailgate perfectly, providing a seamless and effortless method for incorporating a high-performance subwoofer into your audio setup. Built with durability in mind, the subwoofer enclosure ingeniously utilizes the tailgate for mounting, optimizing space utilization while ensuring sturdiness and protection against harsh weather conditions.

The team at AudioControl has designed a subwoofer specifically for this enclosure, delivering immersive and precise bass that's guaranteed to elevate your audio experience. Additionally, we've included the Stinger Audio MT700.1 Monoblock Amplifier - an energy-efficient powerhouse that pumps out 700-Watts of RMS power at 1 ohm. Built using superior quality components, including MOSFET power supply, high-grade capacitors, advanced transformers, and high-quality inductors, this Class D car audio amplifier ensures maximum current flow, allowing for reliable performance with every heart-pounding beat.

We've also included a Jeep Wrangler JL Unlimited-specific amplifier mounting bracket that makes it easy to mount select Audio Control, Stinger Audio, or other amplifiers under your driver's seat. Additionally, our Complete Amplifier 4GA Wiring Kit is designed to withstand even the harshest outside elements, including water, dirt, dust, and debris.

Transform your Jeep Wrangler's audio system today and experience unparalleled sound quality, reliability, and convenience. With our all-in-one subwoofer solution, you can take your driving experience to the next level and enjoy the music like never before.

What's In The Box

• Swing gate-mount 12" 400 watt subwoofer loaded enclosure for Jeep Wrangler JLU (TXJWB12)

• 700 Watt Class D Monoblock Car Audio Amplifier (MT-700.1)

• Jeep Wrangler 4GA wiring kit w/ 12ft 2 channel RCA cable (STXKJW4)

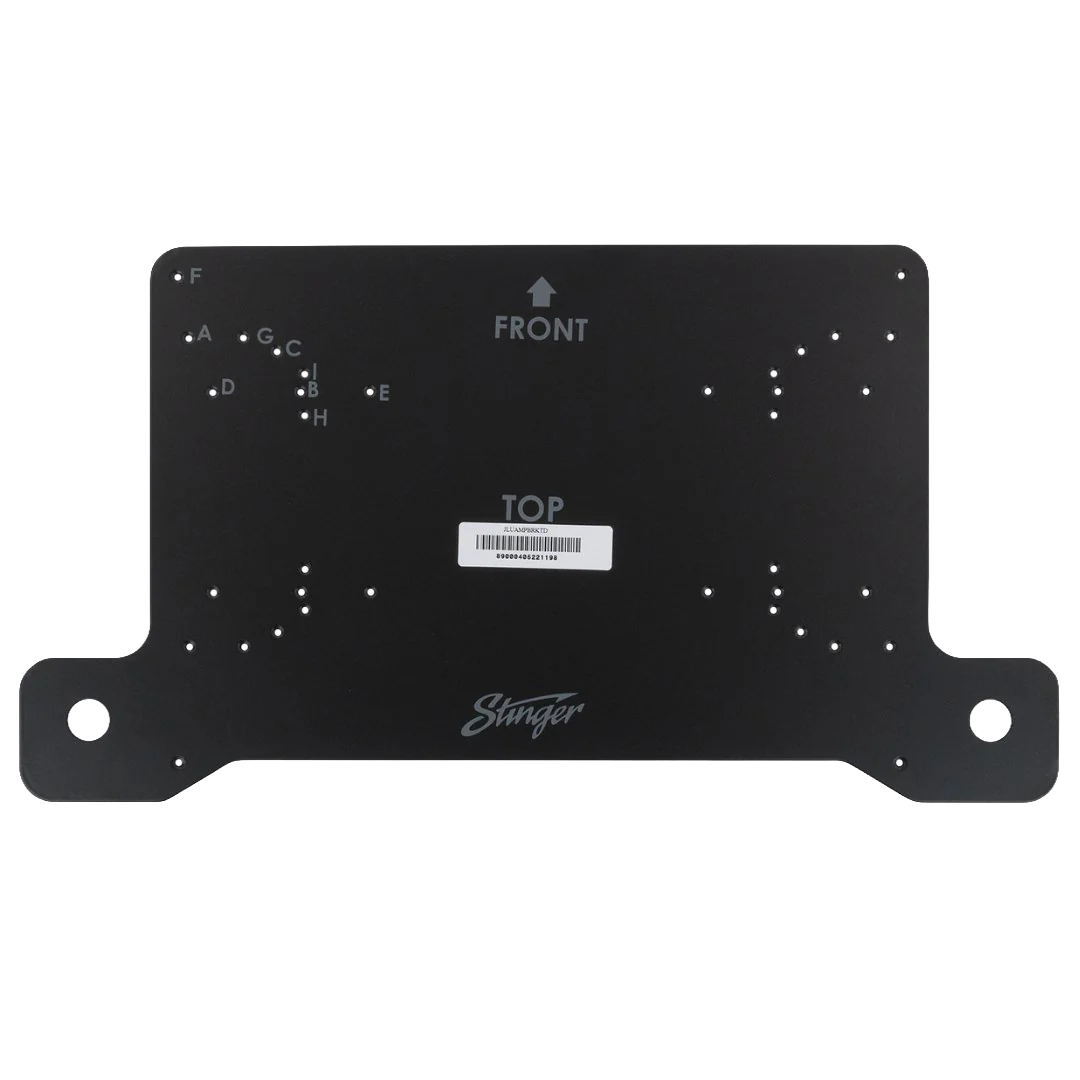

• Jeep Wrangler JL Unlimited amplifier mounting system (JLUAMPBRKTD)

• 15ft of 14GA speaker wire

Specifications

Loaded Subwoofer Enclosure Specifications

Number of Channels:	1
4Ω: CH 1	350W x 1
2Ω: CH 1	520W x 1
1Ω: CH 1	800W x 1
Total RMS Power (Sum of rated power):	800W
Bridgeable:	NO
Crossover Mode:	LP
CH 1	50Hz - 250Hz @ 12dB / Oct Linkwitz Riley
Subsonic	10Hz - 55Hz @ 12dB / Oct Linkwitz Riley
Input Channels:	2CH L/R
Input Mode:	Switchable Unbalanced / Balanced
Input Sensitivity:	.2v - 5v Unbalanced RCA Low-Level .5v - 10v Balanced RCA Hi-Level
Processing:	Bass Boost 0 - +18dB @45hz Variable Phase 0 - 180 Degrees
Output Channels:	Pass Through from Input Signal
Signal to Noise (@ CEA Standard):	>90dB
Frequency Response: Full Range	CH 1 15Hz - 250Hz
Topology Class:	D
Heatsink Type:	Extruded Aluminum
Cooling Type:	Radiation
Operating Voltage:	8V to 16V
Switchable Auto-Turn On:	No
Power Supply Type:	Unregulated
Power Terminals:	4 Gauge
Speaker Terminal:	10 Gauge
On-Board Fusing:	3 x 30A ATC
Recommended Inline Fuse:	80A
Dimensions (L x W x H):	10.16” x 5.91” x 1.91” - 258mm x 150mm x 48.5mm

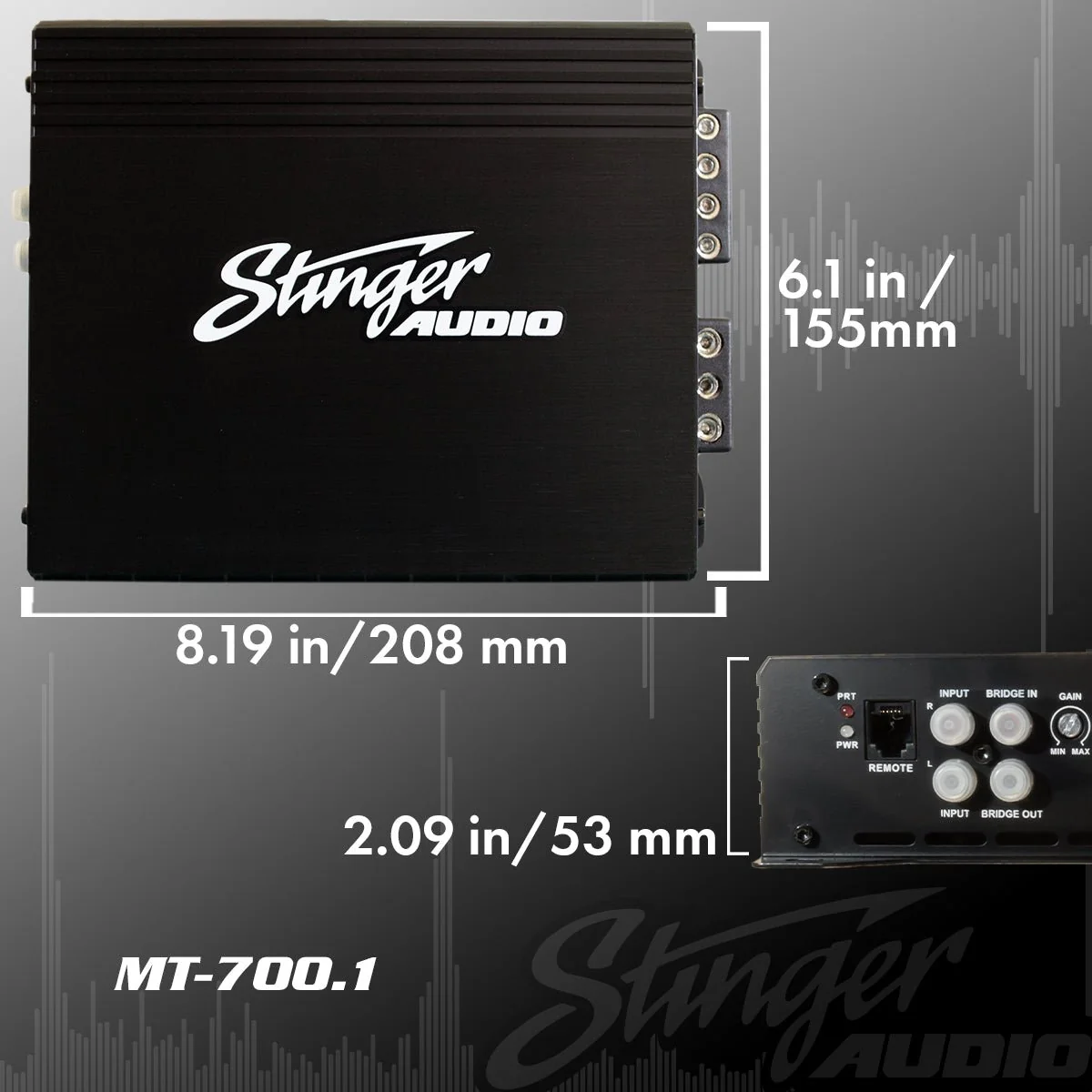

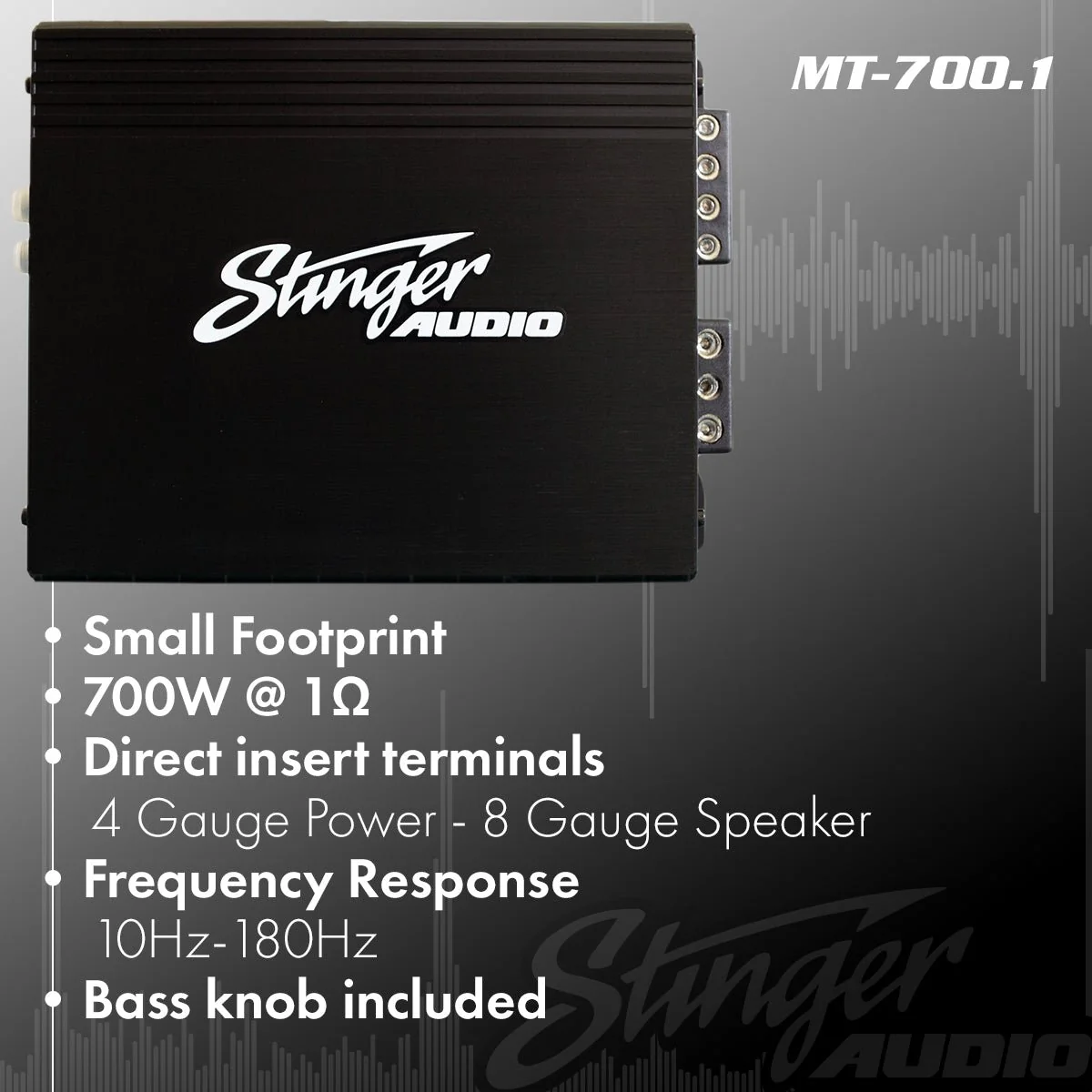

Monoblock Amplifier Specifications

Number of Channels:	1
1Ω:	700 Watts x 1 Channel
2Ω:	500 Watts x 1 Channel
4Ω	300 Watts x 1 Channel
Bridged RMS Rating / 2Ω Minimum	1200W x 1
Signal to Noise (@ CEA Standard)	-93db
Input Sensitivity 0.2-6v	0.2-6v
Gain	0.2v - 6v
Crossover Control, Linkwitz-Riley	SUB 0Hz - 50Hz (Subsonic) LP 40Hz - 180Hz @ 12dB/Oct
Bass-Boost Frequency Range	30-80 Hz
Bass-Boost Q	0-12dB
Frequency Response (+- 1dB)	10Hz - 180Hz
Efficiency (Average)	85%
Topology Class:	Class D
Remote Bass Control	Included
Operating Voltage	9V to 16V
Power Terminals:	4 Gauge
Speaker Terminal:	8 Gauge
Recommended External Fusing	80A

HEXFET® is a registered trademarks of International Rectifier Corporation.

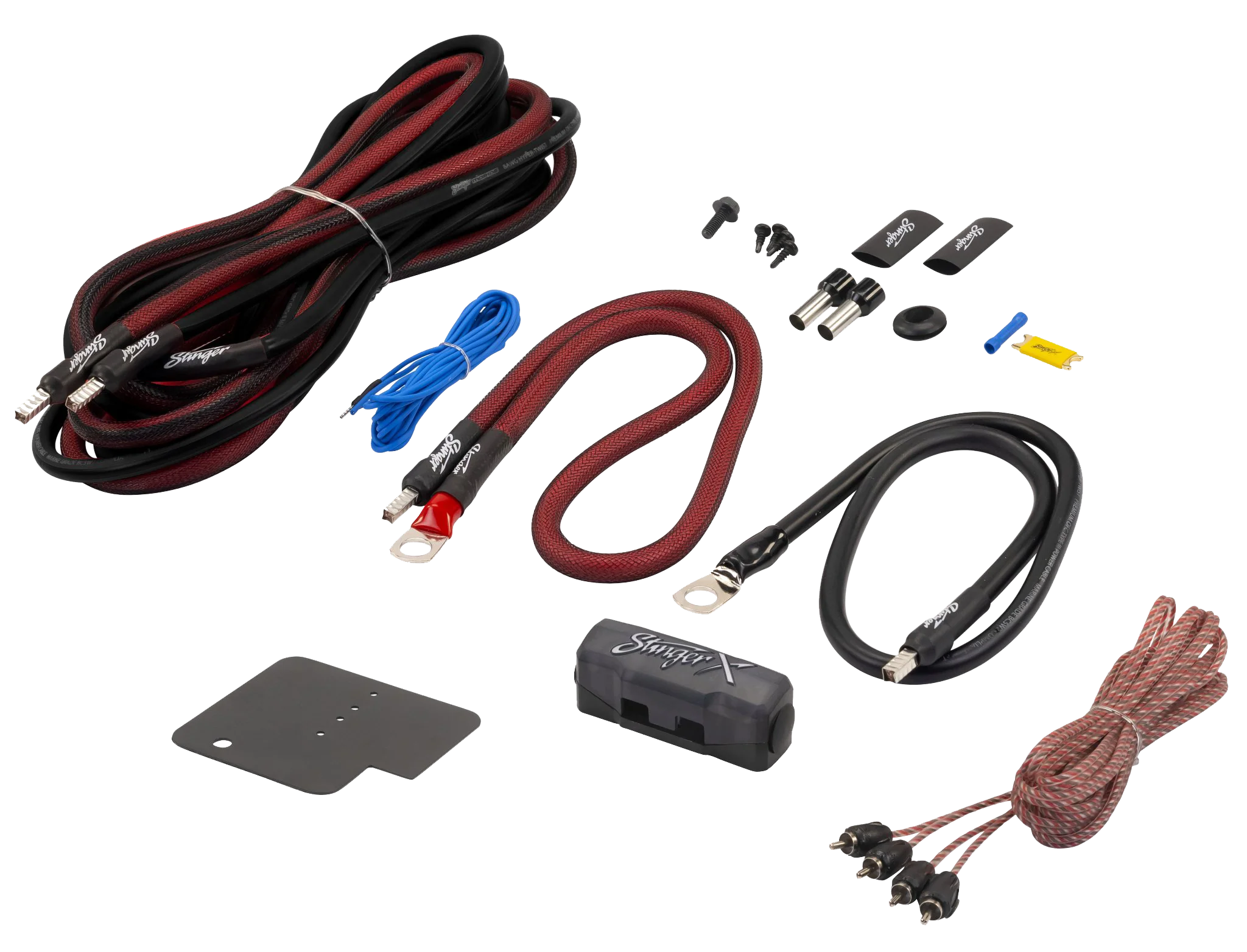

4GA Wiring Kit Specifications

Vehicle Fitment	Jeep Wrangler Unlimited 4-Door (2007-2022) Jeep Gladiator JT (2020-2022)
Placement	Driver's Seat
High Current OFC Copper	4 Gauge
Directional Twisted-Pair RCA Cable	2 channel 4000 series

Element-ready jacket for extreme environments

Pre-cut, terminated, and loomed wire

Expandable X-Link fuse holder with custom mounting bracket

Wire ferrules, remote turn-on wire, and hardware pack included
